Sprecher + Schuh CA7-60-10-120 Contactor 60 AMP AC-3

Product Description

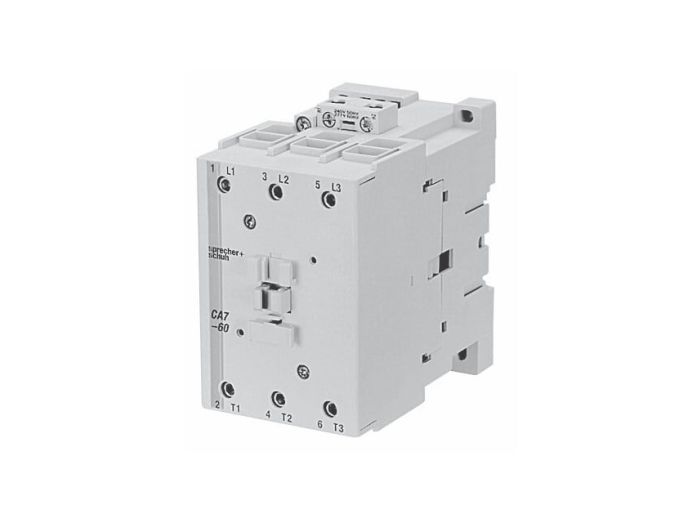

The Sprecher + Schuh CA7-60-10-120 is a 60 AMP AC-3 IEC contactor with 1 normally open auxiliary contact and a 110v50Hz/120v60Hz AC rated coil. This 3 pole contactor is rated for 20 H.P. at 230 volt and 40 H.P. at 460 volt 3-phase, has screw terminals, and mounts on 35MM DIN rail.

• 60 AMP AC-3 (100 AMP AC-1) IEC contactor
• 1 normally open (N.O.) auxiliary contact
• 110v50Hz/120v60Hz AC rated coil

Product Highlights

This contactor allows for 2- and 4-pole top mount and 2 pole side mount auxiliaries and can be used with CEP7 electronic overload relays to form a complete starter.

Product Information

Standard Information

• Brand: SPRECHER + SCHUH
• Manufacturer Part Number: CA7-60-10-120

Technical Specifications

• Coil Voltage: 120 VAC
• AMP Rating: 60 AMP AC-3
• Horsepower: 40 H.P. @ 460 volt
• Auxiliary Contact: 1NO
• Terminals: Screw
• Product Series: CA7
• Description: IEC Contactor 60 A
• Type: AC Non-Reversing IEC
• Coil Type: Non Latching
• Poles: 3
• Frame Size: CA7
• General Purpose (AC1): 100 A
• UL Motor Switching (AC3): 60 A
• Approvals: CCC, CSA, cULus
• Series: CA7
• Wattage: 32 kW
• Current Type: AC
• Current Rating: 60 A
