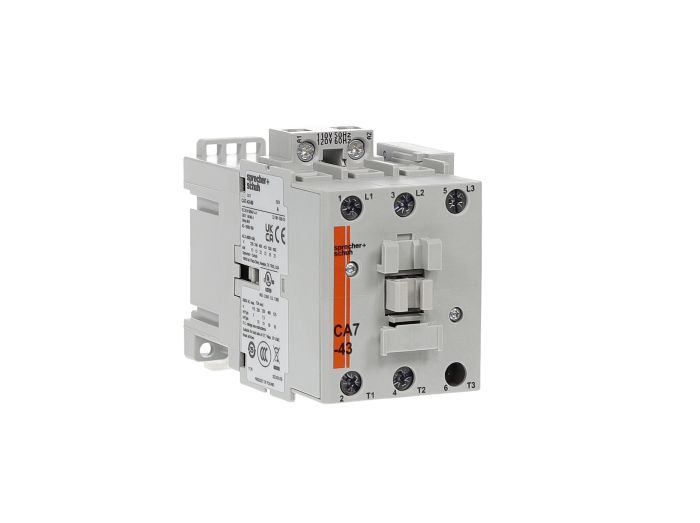

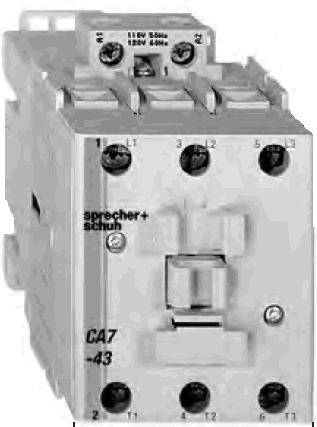

Sprecher + Schuh CA7-43-10-120 Contactor 43 A

Product Description

The SPRECHER + SCHUH CA7-43-10-120 is an IEC contactor rated at 43 A. The CA7 series features mechanically linked contacts and a rugged, space-saving, modular design. It is energy-efficient and allows for easier wiring and a uniform panel appearance. This 3 pole contactor is UL Listed and CSA Approved.

• Rugged, space-saving, and modular design
• Lighter, lower depth
• More energy-efficient contactors

Product Highlights

The CA7 series contactors combine performance and reliability in a space-saving design. They feature mechanically linked contacts and are suitable for use with Series CA7 motor control systems.

Product Information

Standard Information

• Brand: SPRECHER + SCHUH
• Manufacturer Part Number: CA7-43-10-120

Technical Specifications

• Manufacturer Part Number: 22-361-509-33
• Manufacturer: Sprecher + Schuh
• Product Series: CA7
• Family Series: Sprecher + Schuh Contactors, CA7 Series
• Description: IEC Contactor 43 A
• Type: AC Non-Reversing IEC
• Nominal Coil Voltage: 120 VAC
• Coil Voltage: 120 VAC
• Coil Type: Non Latching
• Poles: 3
• Frame Size: CA7
• Auxiliary Contact: 1NO
• Termination: Screw
• General Purpose (AC1): 85 A
• UL Motor Switching (AC3): 43 A
• Approvals: CCC, CSA, cULus
• AMP Rating: 43 AMP AC-3 85 AMP AC-1
• Horsepower: 30 H.P. @ 460 volt 15 H.P. @ 230 volt
• Terminals: Screw
