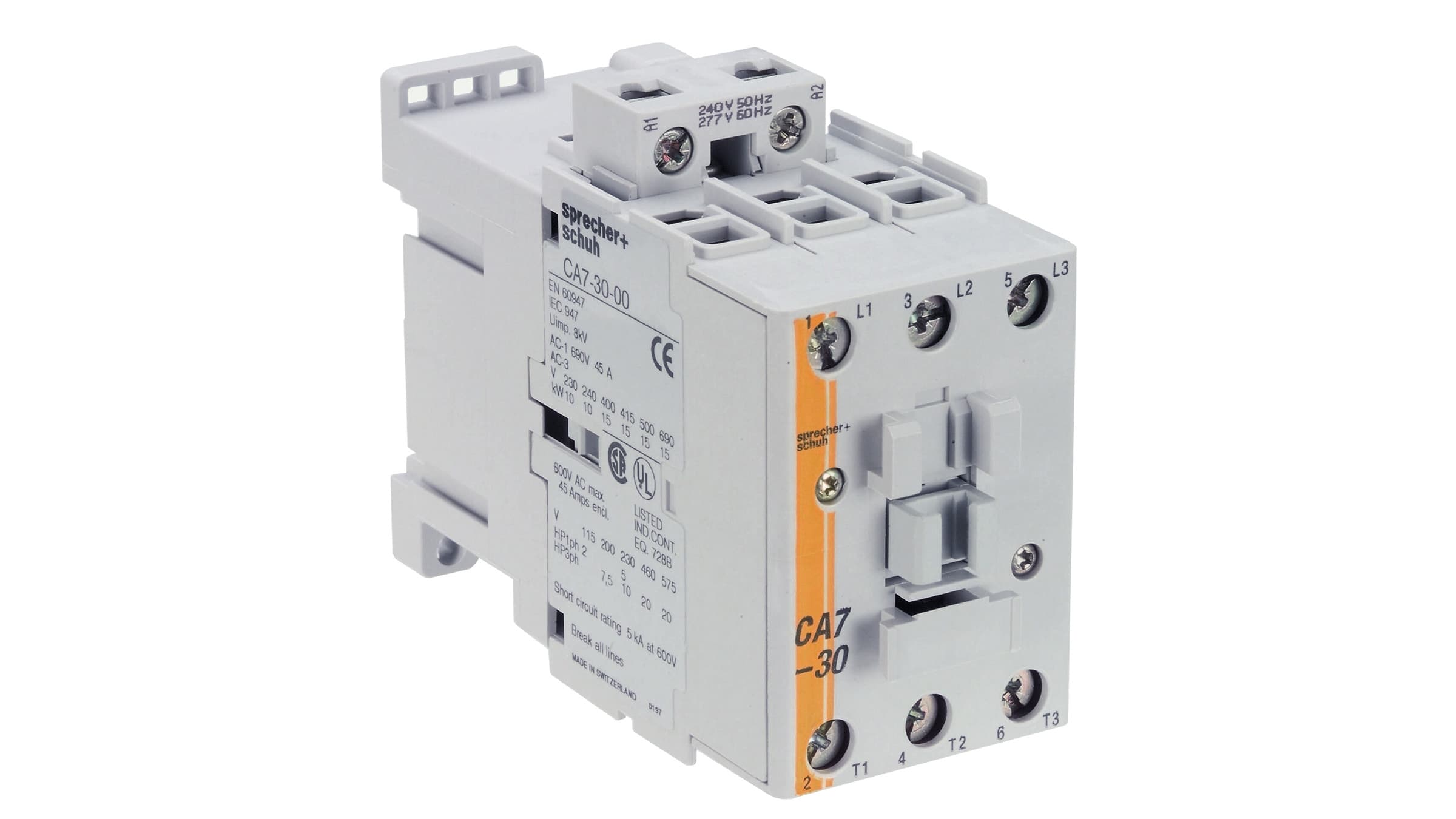

Sprecher + Schuh CA7-30E-10-24E Contactor 30A 24VDC 1NO

Product Description

The Sprecher + Schuh CA7-30E-10-24E is a contactor from the CA7 series, designed for AC non-reversing IEC applications. This 30A contactor features a 24VDC coil and one normally open (1NO) auxiliary contact. Its design includes high contact pressure and bounce-free contacts, suitable for handling high starting currents. It also features mechanically linked contacts, meeting safety circuit requirements per IEC 60947-5-1.

• Rugged, space-saving, and modular design
• Lighter, lower depth
• More energy-efficient contactors

Product Highlights

The CA7 series features mechanically linked contacts and a compact design for efficient performance.

Product Information

Standard Information

• Brand: SPRECHER + SCHUH
• Manufacturer Part Number: CA7-30E-10-24E

Technical Specifications

• Manufacturer Part Number: CA7-30E-10-24E
• Manufacturer: Sprecher + Schuh
• Product Series: CA7
• Family Series: Sprecher + Schuh Contactors, CA7 Series
• Description: CONTACTOR 30A 24VDCE 1NO
• Type: AC Non-Reversing IEC
• Nominal Coil Voltage: 24 VDC
• Coil Voltage: 24 VDC
• Coil Type: Non Latching
• Poles: 3
• Frame Size: CA7
• Auxiliary Contact: 1NO
• Termination: Screw
• General Purpose (AC1): 65 A
• UL Motor Switching (AC3): 30 A
• Approvals: CCC, CSA, cULus
• Coil Power Rating: 2 hp at 115 V at 1-Phase, 5 hp at 230/240 V at 1-Phase, 7.5 hp at 200/208 V at 3-Phase, 10 hp at 230/240 V at 3-Phase, 20 hp at 460/480 V at 3-Phase, 25 hp at 575/600 V at 3-Phase
• Series: CA7
• Manufacturer Name: Sprecher + Schuh
• UNSPSC: 39121529
• Number of Poles: 3 Pole
• UL Certification: YES
• CE Certification: YES
• Current (AC-3): 30 A
• HP @ 1 Phase: 2 HP@115V / 5 HP@230V
• HP @ 3 Phase: 7.5 HP@200V / 10 HP@230V / 20 HP@460V / 25 HP@575V
• Product condition: New Factory Sealed
