Sprecher + Schuh CA7-23-10-24Z CA7-23-10

Product Description

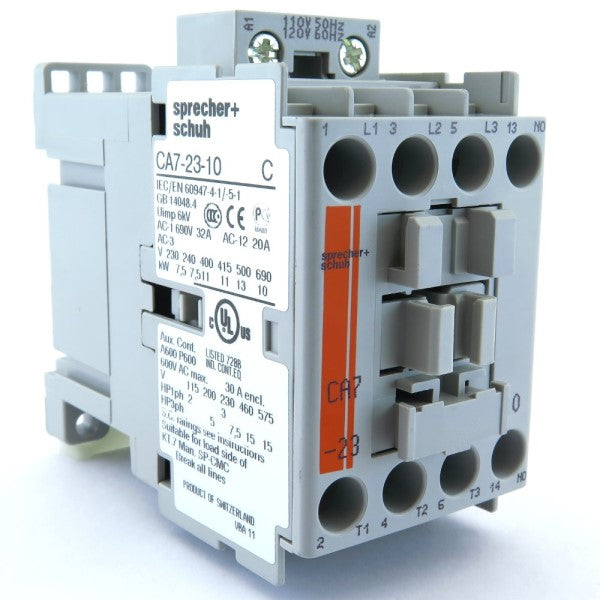

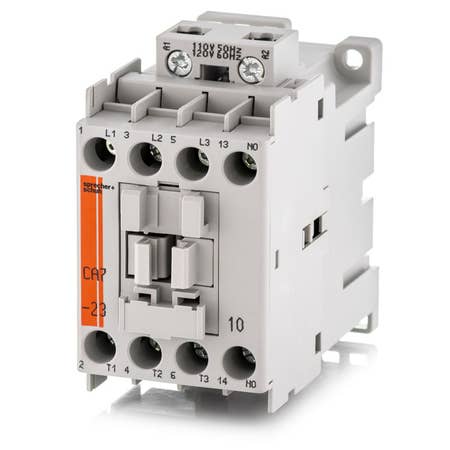

The Sprecher + Schuh CA7-23-10-24Z is a 3-phase IEC rated contactor used for the control of electric motors. It is rated 7.5 HP at 230V and 15 HP at 460V. This 3-pole, 23 AMP contactor features a normally open base mounted auxiliary contact and a 24V AC rated coil. It can be base mounted or snapped onto 35mm DIN rail.

• 3-Pole AC Contactor
• Genuine New OEM Part
• Electromechanical Contactor - 23A - 24VAC - 1 N.O. - DIN Rail.

Product Highlights

The Sprecher + Schuh CA7-23-10-24Z contactor is ideal for motor control applications requiring a reliable and space-saving solution. Its robust design and mechanically linked contacts ensure safe and efficient operation.

Product Information

Standard Information

• Brand: SPRECHER + SCHUH
• Manufacturer Part Number: CA7-23-10-24Z
• Country of Origin: CN

Technical Specifications

• AC3: 23
• AC1: 32
• 230V: 7.5
• 460V: 15
• Auxiliary contacts: 1 NO + 0 NC
• Coil Voltage: 24V
• Catalog No.: CA7-23-10-24Z
• Supplier: Sprecher + Schuh
• Part No: CA7-23-10-24Z
• RoHS: Yes
• Brand: Sprecher & Schuh
• Model: Sprecher & Schuh CA7-23-10-24Z
• MPN: CA7-23-10-24Z
• Condition: New
• Manufacturer Part Number: 22-321-401-44
• Manufacturer: Sprecher + Schuh
• Product Series: CA7
• Family Series: Sprecher + Schuh Contactors, CA7 Series
• Description: IEC Contactor 23 A
• Type: AC Non-Reversing IEC
• Nominal Coil Voltage: 24 VAC
• Coil Type: Non Latching
• Poles: 3
• Frame Size: CA7
• Auxiliary Contact: 1NO
• Termination: Screw
• General Purpose (AC1): 32 A
• UL Motor Switching (AC3): 23 A
• Approvals: CCC, CSA, cULus
