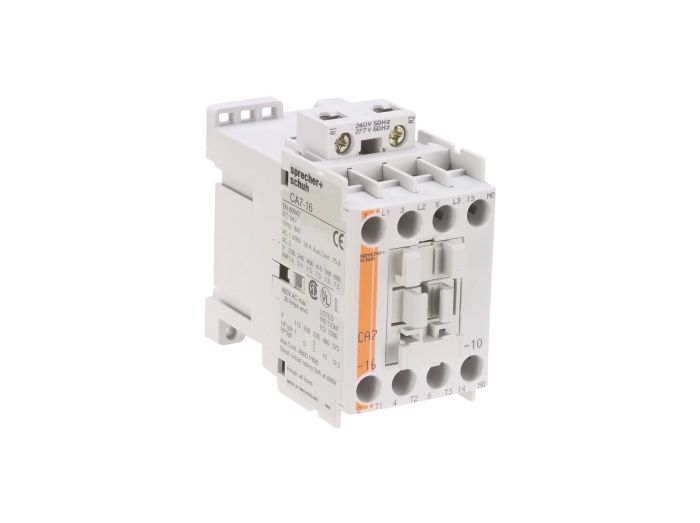

Sprecher + Schuh CA7-16-10-120-L20 Contactor 16 A (CA7)

Product Description

Sprecher + Schuh CA7-16-10-120-L20 is a CA7 series three-pole AC contactor rated 16 A with a nominal 120 VAC coil. It provides one normally open main auxiliary contact plus an additional auxiliary contact for control signaling, and features mechanically linked (positively guided) contacts that meet IEC 60947-5-1 safety requirements. The device supports AC non-reversing switching for general-purpose and motor applications and uses screw terminations for wiring.

• Rated contact current 16 A; general purpose (AC1) rating 32 A and motor switching (AC3) rating 16 A.
• Nominal coil voltage 120 VAC; non-latching coil type with 3 poles and 1 NO auxiliary contact plus additional auxiliary.
• Mechanically linked (positively guided) bounce-free contacts per IEC 60947-5-1; screw termination; certifications CCC, CSA, cULus.

Product Highlights

Three-pole CA7 contactor, 16 A rating, 120 VAC coil, 1 NO auxiliary contact

Product Information

Standard Information

• Brand: SPRECHER + SCHUH
• Manufacturer Part Number: CA7-16-10-120-L20

Technical Specifications

• Manufacturer: Sprecher + Schuh
• Manufacturer Part Number: CA7-16-10-120-L20
• Alternate Manufacturer Part Number: 01DCAM0000H0004
• Product series: CA7
• Description: CONTACTOR 16A 120VAC 1NO +AUX
• Type: AC non-reversing IEC
• Input Voltage: 120 VAC
• Coil Voltage: 120 VAC
• Coil Type: Non latching
• Poles: 3
• Frame Size: CA7
• Auxiliary Contact: 1 NO
• Termination: Screw
• AC1 Rating: 32 A
• AC3 Rating: 16 A
• Certifications: CCC, CSA, cULus
