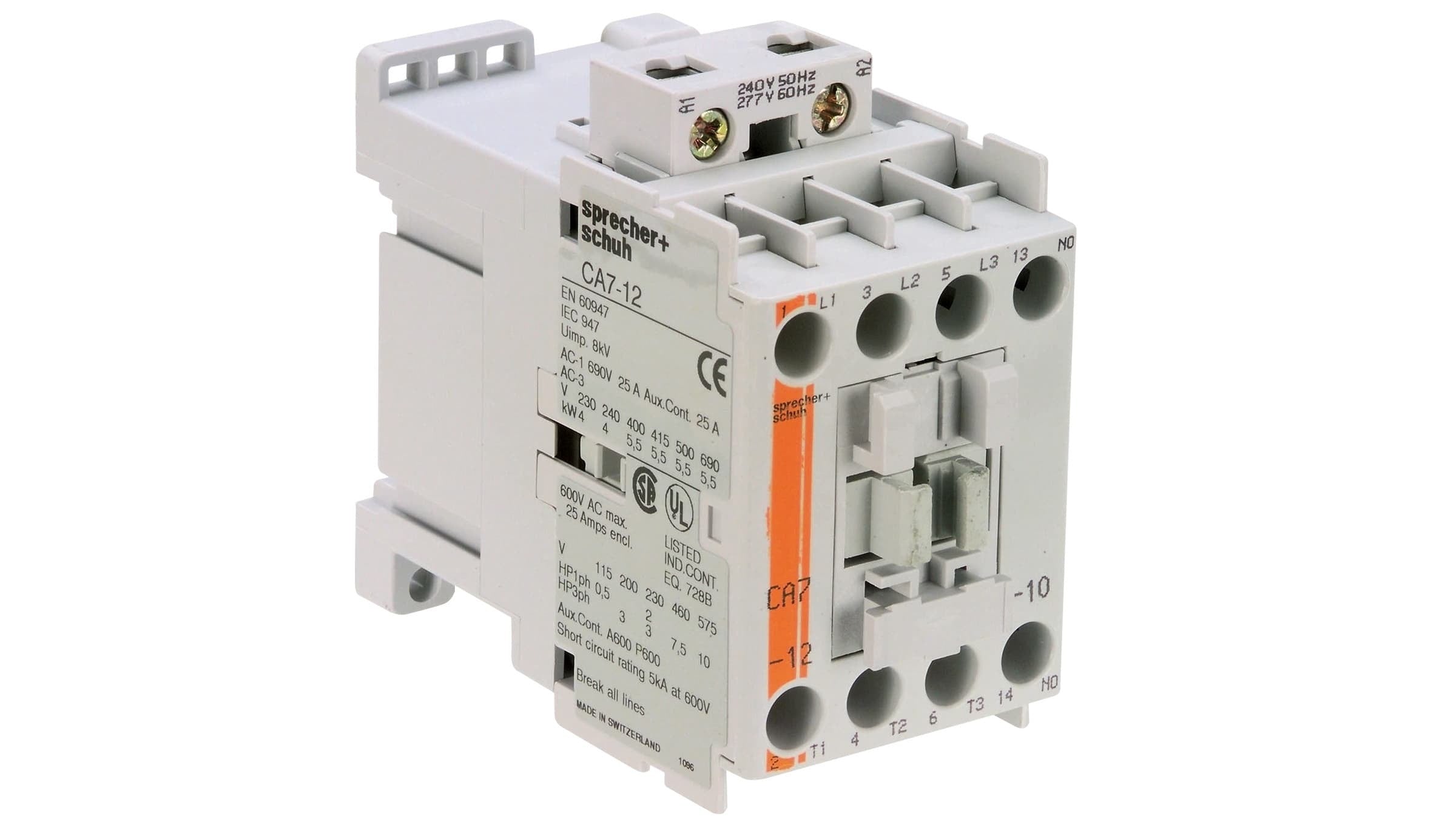

Sprecher + Schuh CA7-12E-10-220E Contactor 12A (3 Pole)

Product Description

Sprecher + Schuh CA7-12E-10-220E is a CA7 series contactor rated 12 A with a 220-250 VDC coil. It is a three-pole, AC non-reversing IEC device with a non-latching coil and one normally open auxiliary contact for motor control and general switching. The contactor uses mechanically linked force-guided contacts with >=0.3 mm clearance per IEC 60947-5-1 and features screw termination and frame size CA7.

• Coil: 220-250 VDC (nominal 250 VDC), non-latching coil
• Electrical ratings: AC1 32 A, AC3 12 A; motor horsepower ratings specified for single- and three-phase voltages
• Construction: 3 poles, 1 NO auxiliary contact, mechanically linked contacts with >=0.3 mm clearance, screw termination; approvals include CCC, CSA, cULus, CE

Product Highlights

Three-pole CA7 contactor, 12 A AC3 rating, 220-250 VDC coil, 1 NO auxiliary contact, IEC safety clearances

Product Information

Standard Information

• Brand: SPRECHER + SCHUH
• Manufacturer Part Number: CA7-12E-10-220E
