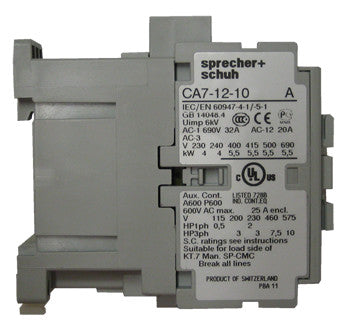

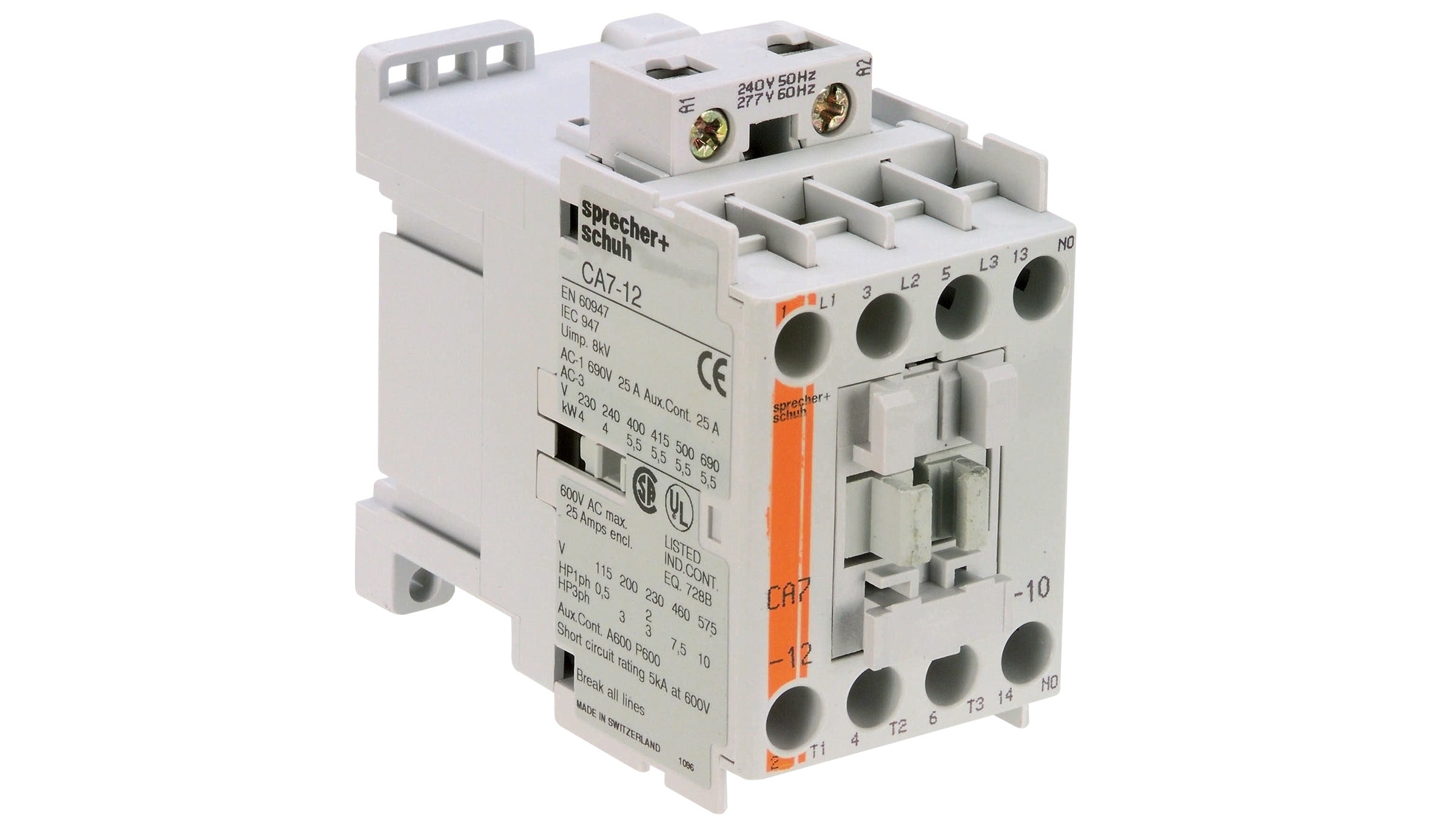

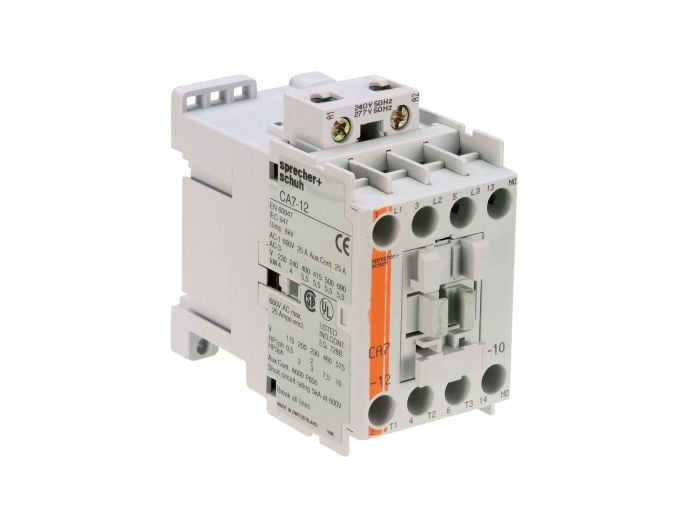

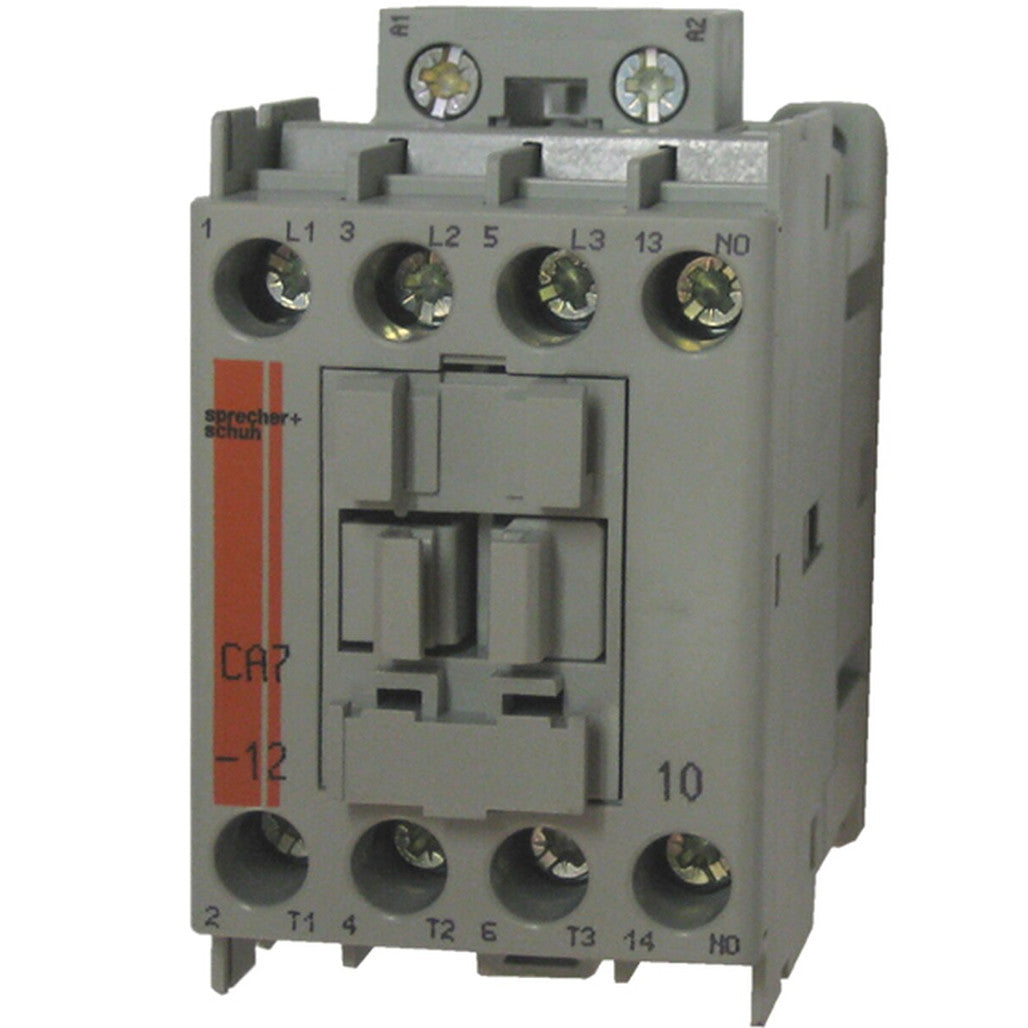

Sprecher + Schuh CA7-12-10-600 IEC Contactor 12 A (3 Pole)

Product Description

The Sprecher + Schuh CA7-12-10-600 is a CA7 series IEC contactor rated 12 A (AC-3) with a 600 VAC nominal coil. It is a 3-pole device with one normally open auxiliary contact and screw terminal connections, designed for compact panel installation. The contactor supports motor loads (for example 3 HP at 230 V and 7.5 HP at 460 V), accepts modular auxiliaries, and meets IEC 60947-1 safety requirements.

• Rated 12 A (AC-3) and 32 A (AC-1); nominal coil voltage 600 VAC
• Three poles, 1 normally open auxiliary contact, screw terminals, 35 mm DIN-rail mounting
• Mechanically linked (positively guided) contacts, designed for reduced arcing and IEC 60947-1 compliance

Product Highlights

3-pole IEC contactor; 12 A (AC-3) / 32 A (AC-1); 600 VAC coil; 1 N.O. auxiliary; screw terminals; 35 mm DIN-rail; IEC 60947-1 compliant

Product Information

Standard Information

• Brand: SPRECHER + SCHUH
• Manufacturer Part Number: CA7-12-10-600
• Country of Origin: United States of America

Technical Specifications

• Brand: Sprecher + Schuh
• Manufacturer Part Number: CA7-12-10-600
• Manufacturer Item Number: 22-301-401-36
• Product Series: CA7
• Product Type: Contactor
• Frame Size: CA7
• Poles: 3
• IEC Contactor Current Rating (AC-3): 12 A
• General Purpose Current Rating (AC-1): 32 A
• Coil Voltage: 600 VAC
• Coil Type: Non latching
• Auxiliary Contact: 1 N.O.
• Termination: Screw terminals
• Mounting: 35 mm DIN-rail
• Horsepower Ratings: 3 HP @ 230 V (three-phase); 7.5 HP @ 460 V (three-phase)
• Family Horsepower Range: Up to 75 HP @ 460/575 V (CA7 family)
• Standards / Compliance: IEC 60947-1
• Approvals: CCC, CSA, cULus, UL Listed, CE Mark
• Type: AC non-reversing IEC
• Item Number: CA7-12-10-600
• Country of Origin: United States of America
