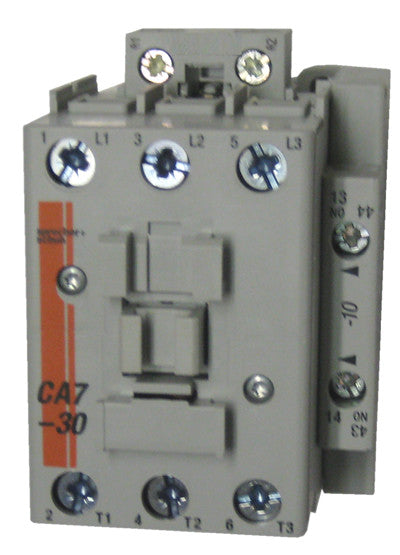

Sprecher and Schuh CA7-30-10-24Z IEC Contactor 30 Amp AC-3 (3-Pole)

Product Description

Sprecher and Schuh CA7-30-10-24Z is a 3-pole IEC contactor with a 24 V AC (50/60 Hz) coil intended for motor control and general switching applications. It carries a 30 A rating for AC-3 duty and 65 A for AC-1 duty, and is rated for 10 HP at 230 V and 20 HP at 460 V (three-phase). The contactor has one side-mounted normally open auxiliary contact, screw terminals, 35 mm DIN rail mounting, and meets IEC 60947-1 with UL, CSA, and CE approvals.

• 24 V AC coil (50/60 Hz) with 3-pole configuration and screw terminals
• Rated 30 A (AC-3) and 65 A (AC-1); 10 HP @ 230 V and 20 HP @ 460 V (3-phase)
• Includes 1 normally open side-mounted auxiliary contact, 35 mm DIN rail mount; compatible with CEP7 overload relays

Product Highlights

3-pole IEC contactor, 24 V AC coil, 30 A AC-3 rating, 35 mm DIN rail mount, UL/CSA/CE certified

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: CA7-30-10-24Z

Technical Specifications

• Brand: Sprecher and Schuh
• MPN: CA7-30-10-24Z
• Coil Voltage: 24 V AC (50/60 Hz)
• Pole Count: 3 pole
• AMP Rating (AC-3): 30 A
• AMP Rating (AC-1): 65 A
• Horsepower: 10 HP @ 230 V; 20 HP @ 460 V (3-phase)
• Auxiliary Contact: 1 normally open (N.O.) side-mounted
• Terminals: Screw terminals
• Mounting: 35 mm DIN rail
• Compatibility: Allows 2- and 4-pole top-mount and 2-pole side-mount auxiliaries; compatible with CEP7 electronic overload relays
• Standards / Certifications: UL Listed, CSA Approved, CE Mark; meets IEC 60947-1
