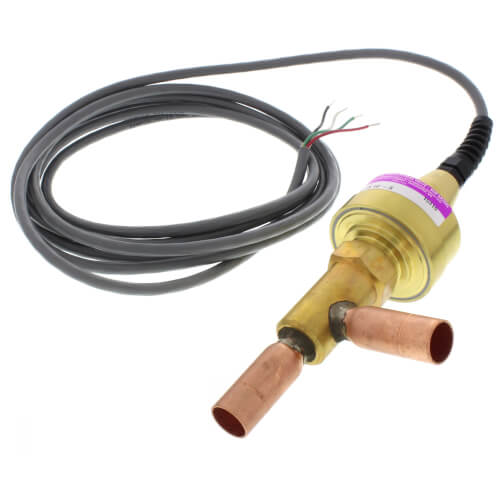

Sporlan 930003 SDR-3 1/2 ODF Angle Electronic Discharge Bypass Valve w/ 10 Ft. Cable Replacement 930003

Product Description

The Sporlan SDR-3 1/2 inch ODF Angle Electronic Discharge Bypass Valve, model 930003, is equipped with a 10 foot cable and is engineered for precise control of discharge gas in bypass applications. Ideal for HVAC professionals managing varied load requirements.

• Stepper motor driven for high accuracy
• Corrosion-resistant construction ensures long-term durability
• Low power consumption at only 4 Watts

Product Highlights

This valve offers tight shutoff capabilities when closed and can be integrated with various building management systems. It is compatible with CFC, HCFC, and HFC refrigerants and has a design capacity of up to 40 tons R-410A.

Product Information

Standard Information

• Motor Type: 2 Phase Permanent Magnet- 2 Coil Bipolar
• Temperature Range: Minimum Ambient Temperature -40°F, Minimum Fluid Temperature -40°F

Technical Specifications

• Valve Type: SDR-3
• Inlet/Outlet Connection: 1/2 inch ODF
• Resolution: 3193 steps
• Configuration: Angle
• Weight: 2.24 pounds
• Dimensions: Height 3.6 inches, Width 8.75 inches, Depth 12.65 inches
