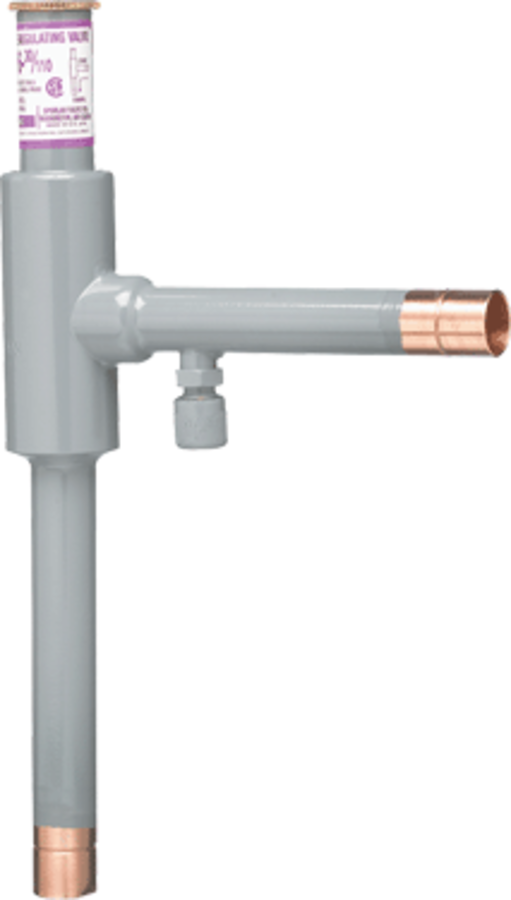

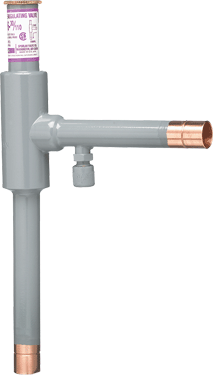

Sporlan 900584 Crankcase Pressure Regulating Valve 0/60 psi 1/2 SAE Adjustable

Product Description

The Sporlan 900584 is a crankcase pressure regulating valve designed to manage crankcase pressure effectively. This valve is adjustable and operates within a pressure range of zero to sixty psi. It features a half-inch SAE connection, making it compatible with various refrigeration and HVAC systems.

• Adjustable settings for precise pressure control
• Brass construction for durability
• UL listed and CSA certified for safety compliance

Product Highlights

This valve prevents compressor motor overload by limiting crankcase pressure during and after defrost cycles or shutdown periods.

Product Information

Standard Information

• Brand: Sporlan
• Part Number: 900584

Technical Specifications

• Size: 1/2
• Material: Brass
• Pressure Rating: 0 to 60 psig
• Connection Ends: SAE
• Maximum Rated Pressure: 400 psig
• Length: 10.5 inches
• Width: 6.4 inches
• Height: 1.6 inches
• Master Product Group: Pressure Regulating Valves
• Product Group: Small PRV's
• Item Class: CRANKCASE PRV CRO(T)-6/-10
• Harmonized Code: 8481.80.9015
• Pieces Per Case: 18
