Sporlan 475459 Flush-all 2 Lb System Cleanup Kit

Product Description

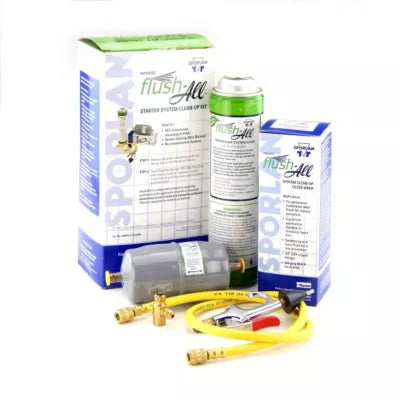

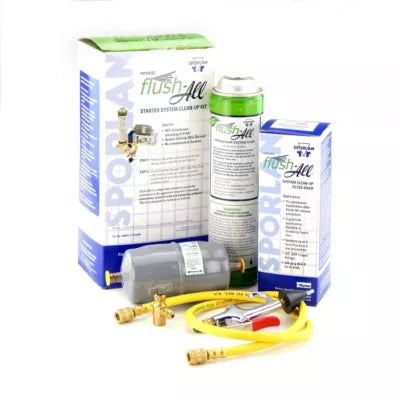

The SPORLAN 475459 is the FAKIT2-S Flush-All 2 lb Starter System Cleanup Kit, designed to remove both soluble and insoluble contaminants from refrigerant systems. The kit combines FA Flush-All solvent with a patented bi-flow Sporlan SFD-163S filter-drier to address contamination that causes metering device restrictions and costly callbacks. The solvent evaporates without leaving residue and is non-toxic and non-flammable. The included SFD-163S filter-drier is engineered to capture disturbed debris that nitrogen purging leaves behind and is rated for permanent installation in the system.

This kit is sized for refrigerant systems up to eight tons and is well-suited for R-410A conversions as well as general cleanup of air conditioning, heat pump, and refrigeration systems. It is specifically compatible with 3/8 inch OD liquid line sets. HVAC and refrigeration technicians use this kit as part of a flush-and-replace procedure following compressor burnout, contamination events, or refrigerant system conversions. For applications larger than eight tons, the FA Flush-All solvent and components are also available separately.

Key Features

• Removes soluble and insoluble contaminants to protect metering devices from restriction
• FA Flush-All solvent leaves no residue upon evaporation
• Solvent is non-toxic and non-flammable for safer handling in occupied spaces
• Accepted under the U.S. EPA SNAP program as a substitute for ozone-depleting substances
• Includes patented bi-flow Sporlan SFD-163S filter-drier rated for permanent installation
• Sized for refrigerant systems up to eight tons

Compatibility

Designed for air conditioning, heat pump, and refrigeration systems up to eight tons using 3/8 inch OD liquid line sets. Suitable for R-410A conversions and general system cleanup procedures.

Installation Notes

Installation should be performed by a licensed HVAC or refrigeration technician. The system must be recovered and de-pressurized before beginning the flush procedure. Follow the flush sequence before installing the SFD-163S filter-drier, which is designed for permanent in-line installation in the liquid line. Verify compliance with applicable local mechanical codes and EPA Section 608 refrigerant handling regulations.

Technical Specifications

• Kit Model: FAKIT2-S
• Solvent Quantity: 2 pounds
• System Capacity: Up to 8 tons
• Compatible Liquid Line OD: 3/8 inches
• Included Filter-Drier: Sporlan SFD-163S (bi-flow, permanent installation)
• Solvent Residue: None upon evaporation
• Flammability: Non-flammable
• Toxicity: Non-toxic
• EPA SNAP Status: Accepted as substitute for ozone-depleting substances

Standard Information

• Brand: SPORLAN
• Manufacturer Part Number: 475459
