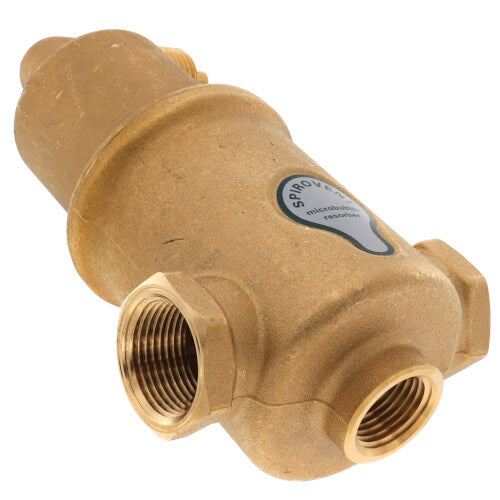

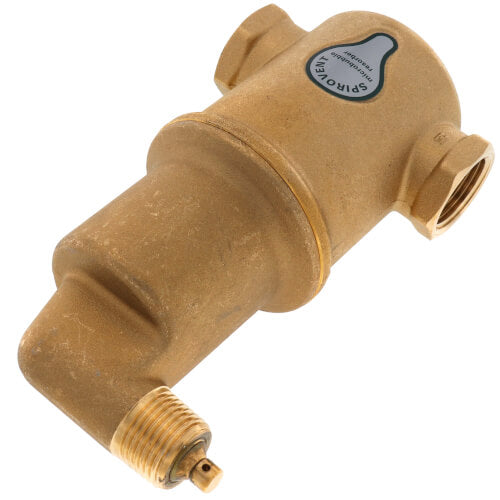

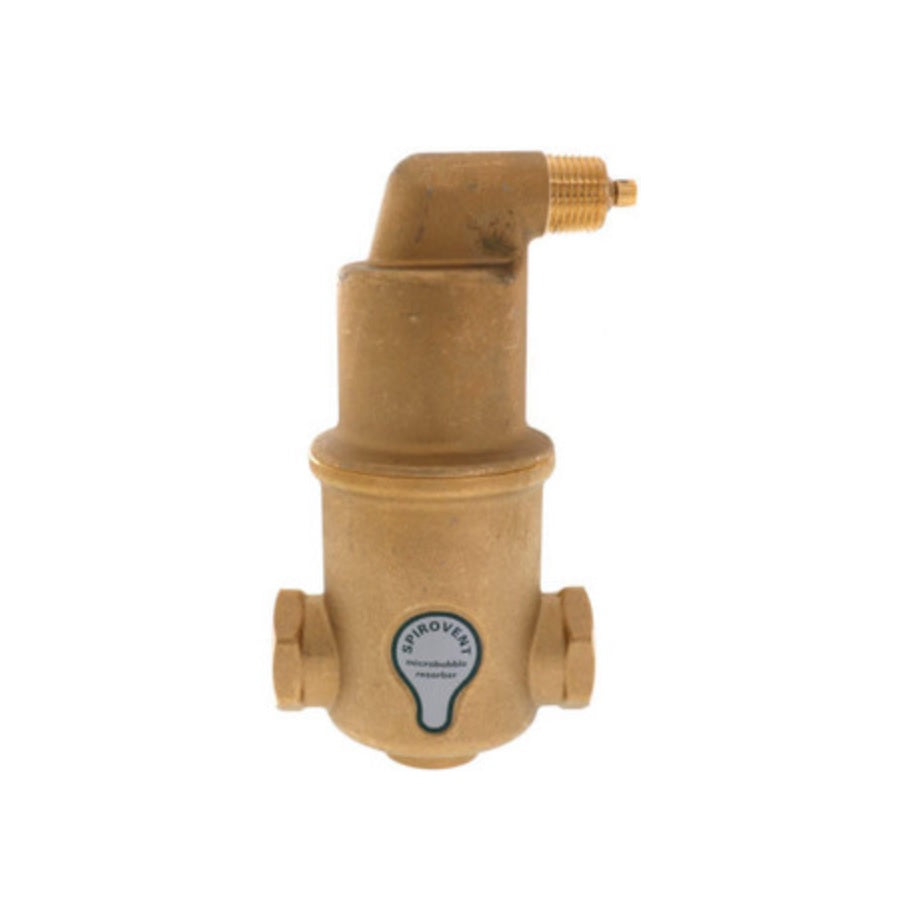

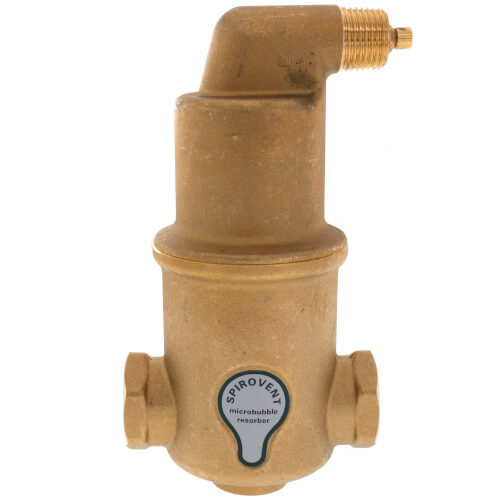

Spirovent VJR-075 3/4 inches NPT Spirovent

Product Description

The SPIROVENT VJR-075 is a 3/4" NPT Spirovent air eliminator designed for radiant heat and hydronic systems. It employs a patented Spirotube coalescing medium that scrubs air from the system fluid. Simple to install with a straight in-line design, it is ideal for residential and light commercial applications. Solid brass construction ensures durability.

• Simple to install with a straight in-line design
• Solid brass construction
• Integral patented air release mechanism
• Designed for radiant heat and hydronic systems

Product Highlights

Effectively eliminates air from heating systems, improving performance and extending component life. Features a patented air release mechanism and durable brass construction.

Product Information

Standard Information

• Brand: SPIROVENT
• Manufacturer Part Number: VJR-075

Technical Specifications

• Brand: SPIROVENT
• MPN: VJR-075
• Connection Type: FNPT x FNPT
• Max Pressure (PSI): 150
• Product Type: Air Eliminator
• Size: 3/4"
• Material: Brass
• Application: Heating
• Max Temp (F): 270°F
• Connection Method: Threaded
• Construction: Solid brass construction
• Connections: 3/4" FNPT (female threaded)
• Max. operating pressure: 150 PSI
• Max. temperature: 270F
• Bottom tapping: 1/2" FNPT
• Flow at 4ft/sec. velocity: 6 GPM
• Series: VJR Series
• Nominal Size: 3/4 in
• Pressure Rating: 150 psi
• Temperature Rating: 270 deg F
• Flow Rate: 6 gpm
• OEM: Spirovent
• OEM #: VJR-075
• Body Material: Brass
• End Connection: Threaded x Threaded
• End To End Distance: 3.4 Inch
