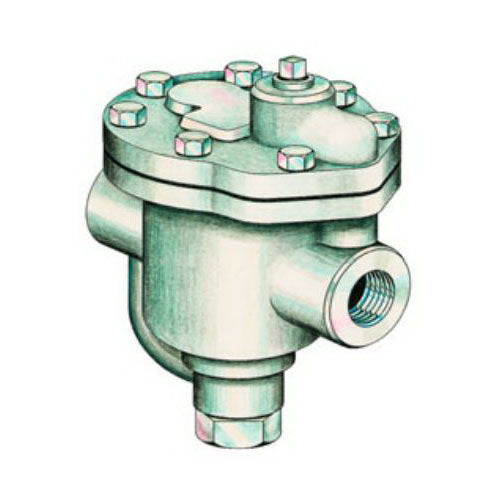

Spirax Sarco 62757 B2 Inverted Bucket Steam Trap 3/4 in

Product Description

The Spirax Sarco 62757 inverted bucket steam trap contains an inverted bucket mechanism that responds to the density difference between steam and condensate. Its discharge action is cyclic, discharging condensate close to steam temperature. It has a 3/4 in nominal size and is made of cast iron.

• Maximum allowable pressure of 250 psig at 450 deg F
• Inverted bucket mechanism responds to the difference in density between steam and condensate
• Inline horizontal piping configuration

Product Highlights

This steam trap is designed for use in steam main drip stations, laundry equipment, industrial dryers, and storage tanks.

Product Information

Standard Information

• Brand: SPIRAX SARCO
• Manufacturer Part Number: 62757

Technical Specifications

• End Style: FNPT
• Length: 6.6 in
• Material: Cast Iron
• Nominal Size: 3/4 in
• Pressure Rating: 180 psi
• Series: B Series
• Temperature Rating: 450 deg F
• Connection Type: NPT
• Body Material: Cast Iron
• Material Standard: ASTM A126 Grade B
• Width: 5.3 IN
• Flow Pattern: In-Line
• Brand: Spirax-Sarco
• Steam Trap Type: Inverted Bucket
• Steam Trap Connection Size: 3/4"
• Max Pressure: 180 psi
• Steam Trap Mounting: In-Line Horizontal
• Model: B2-180
