Spi See Catalog 6-piece Drop Indicator Point Kit Agd

Product Description

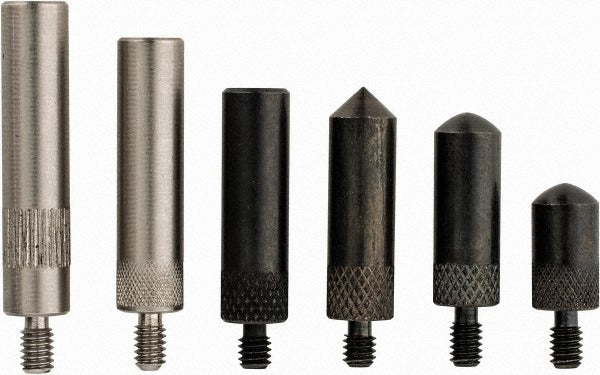

The SPI SEE CATALOG is a 6-piece drop indicator contact point kit designed for use with AGD (American Gage Design) indicators. The kit includes six interchangeable contact point styles — ball, cone, conical, and flat — all machined from steel for consistent dimensional accuracy under repeated use. Each point threads onto standard AGD indicator stems using a 4-48 thread. The complete set covers the most common contact point configurations required for surface, bore, and comparative measurement setups on the shop floor or inspection bench. Weighing 0.3 pounds, the compact kit is easy to store and transport to the job site.

This kit is intended for machinists, tool and die makers, metrology technicians, and industrial inspection professionals who work with AGD-style dial drop indicators. It is suited for residential and light industrial machine shops, inspection departments, and field measurement applications where multiple point styles are needed without purchasing individual points. The variety of included points allows fast changeover between measurement tasks without additional tooling.

Key Features

• Six contact point styles in one kit: ball, cone, conical, and flat configurations
• Steel and steel ball construction for durability and dimensional stability
• 4-48 thread size matches standard AGD indicator stems
• Includes 0.395 inch point, 0.625 inch ball point, 0.750 inch conical point, 0.750 inch point, 0.875 inch flat point, and 1 inch extension
• Compact kit weight of 0.3 pounds for easy portability

Compatibility

Designed for use with AGD (American Gage Design) dial drop indicators with a 4-48 threaded contact point stem.

Installation Notes

Contact point replacement is performed by metrology or machining personnel and requires no special tools beyond a small wrench or fingers to thread the point onto the indicator stem. Always zero or re-calibrate the indicator after changing contact points, as point length affects the reference position. Ensure the indicator is removed from active measurement setup before swapping points to avoid damage to the indicator or workpiece.
