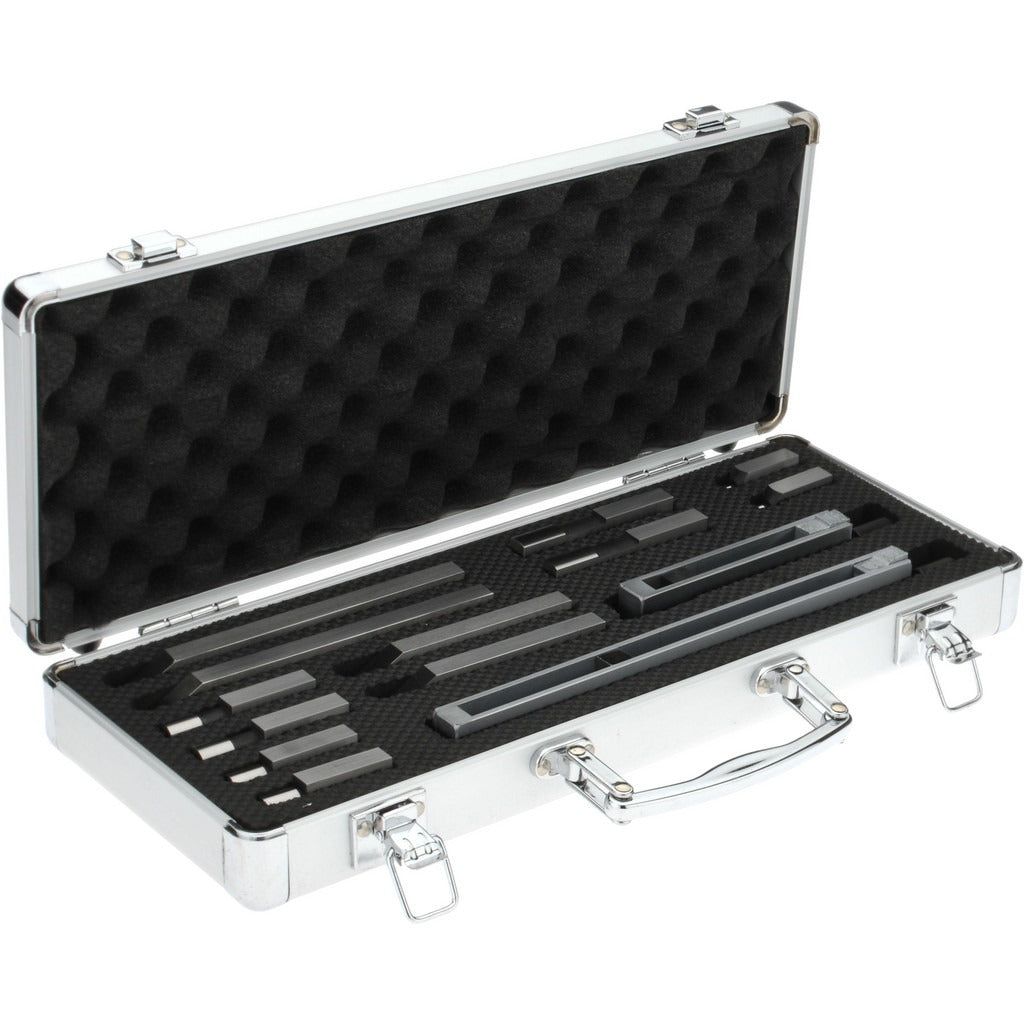

Spi MS170308017 Gage Block Accessory Set 14 Piece

Product Description

The SPI MS170308017 is a 14-piece gage block accessory set designed for use with rectangular gage blocks in precision metrology applications. The set includes beveled edge jaws, cylindrical jaws in multiple radii, two holders of different capacities, and an aluminum storage case. It gives metrology technicians and quality control professionals a complete accessory solution for extending the measurement capabilities of their existing rectangular gage block sets. All components are purpose-built for accurate, repeatable linear measurement tasks on the shop floor or in a calibration lab.

This accessory set is suited for dimensional inspection environments where rectangular gage blocks are used as reference standards. Typical applications include machine shop quality control, toolroom inspection, and calibration lab work. The included jaw pairs and holders allow technicians to measure inside and outside dimensions, radii, and other features that a bare gage block wringing stack cannot directly access. The aluminum case keeps all 14 components organized and protected when not in use.

Key Features

• 14-piece set provides a comprehensive accessory solution for rectangular gage block measurement setups
• Two pairs of beveled edge jaws in 4-inch and 6-inch lengths for outside measurement applications
• Four pairs of cylindrical jaws with radii of 0.100, 0.200, 0.250, and 0.500 inches for radius and bore measurement
• 4.175-inch length holder with 2.250-inch capacity for shorter gage block stacks
• 8.500-inch length holder with 6.000-inch capacity for extended measurement ranges
• Aluminum carrying case included for organized storage and transport of all components

Compatibility

Designed for use with rectangular gage blocks as stated by the manufacturer. Specific gage block brand or grade compatibility is not specified in the product data.

Installation Notes

Gage block accessories should be handled by qualified metrology or quality control personnel following established calibration and measurement procedures. Clean all contact surfaces before assembling jaws or holders onto a gage block stack to avoid contamination that can affect accuracy. Store components in the included aluminum case when not in use to protect precision surfaces from damage and corrosion.
