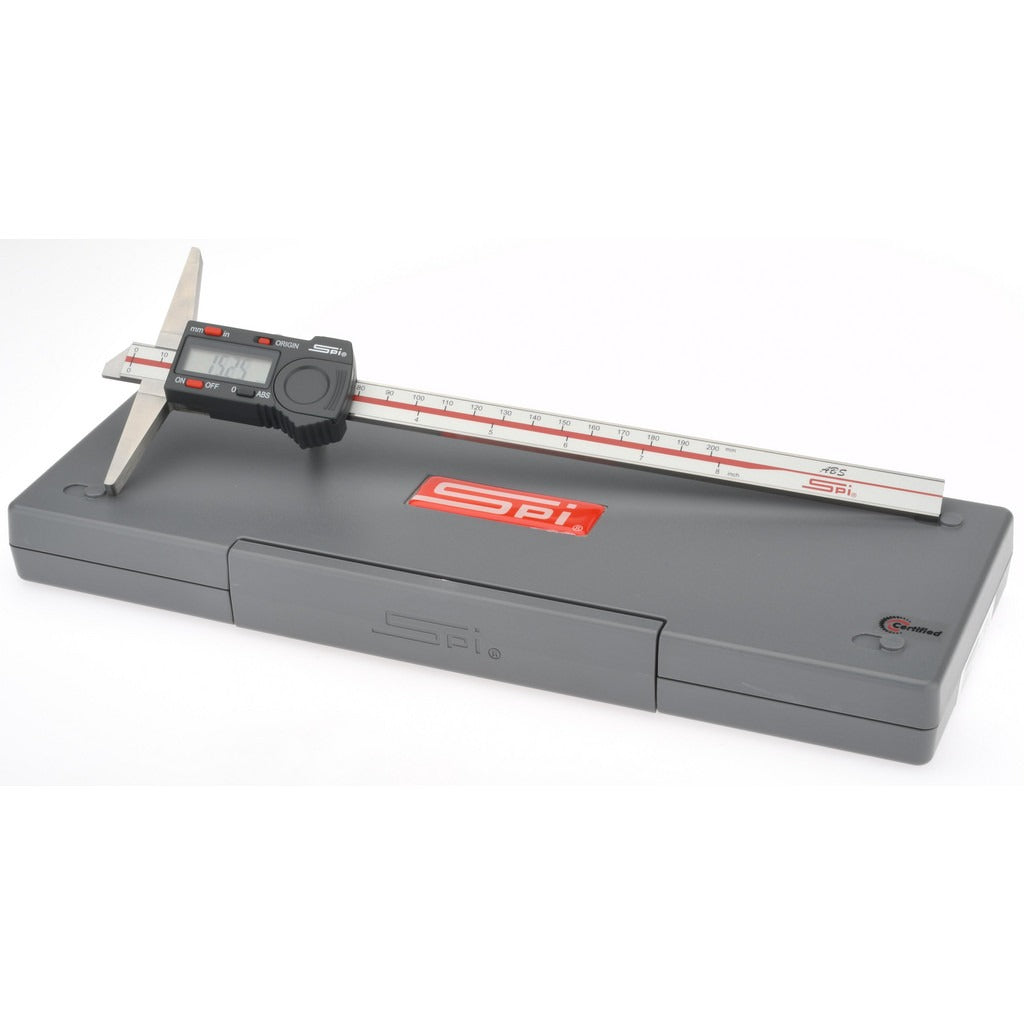

Spi MS160719035 Electronic Depth Gage 0-200mm Nist

Product Description

The SPI MS160719035 is a digital electronic depth gage designed for precise depth, step, and slot measurements in machining, inspection, and fabrication environments. It reads from 0 to 200mm (approximately 0 to 7.87 inches) with a resolution of 0.01mm (0.0005 inch) and an accuracy of 0.03mm (0.0015 inch). The 4-inch (101.60mm) base provides stable seating across workpiece surfaces. The unit ships with a NIST traceability certification, making it suitable for calibrated inspection workflows. It is typically used by machinists, quality control technicians, and tool room personnel who require documented measurement traceability.

This depth gage suits dimensional inspection tasks in job shops, manufacturing facilities, and quality labs. The linear scale is embedded in the beam, and a 4-inch base length accommodates a wide range of workpiece geometries. SPC and USB data output capability allows direct connection to statistical process control software or data-logging systems, reducing transcription error during inspection runs. The unit arrives calibrated and ready for immediate use in environments where documented accuracy is required.

Key Features

• 0 to 200mm measurement range with 0.01mm resolution and 0.03mm accuracy
• 4-inch (101.60mm) base length for stable, consistent seating on workpiece surfaces
• Embedded linear scale for reliable, wear-resistant measurement
• SPC and USB data output for integration with process control software
• NIST traceability certification included for calibrated inspection use
• Automatic shut-off to extend CR2032 battery life; battery included

Compatibility

Designed as a general-purpose electronic depth gage suitable for use in standard machining, fabrication, and quality inspection applications where a 4-inch base and 200mm range are appropriate.

Installation Notes

Depth gages require no permanent installation; position the base flat against the reference surface and extend the beam perpendicular to the depth being measured. Ensure the reference surface and workpiece are free of chips, burrs, and coolant before taking measurements, as surface contamination directly affects reading accuracy. This instrument has no water resistance rating and should not be used in wet or flooded environments. Replace the CR2032 battery when the low-battery indicator appears; do not expose the unit to shock, extreme temperatures, or magnetic fields that could affect the embedded linear scale.
