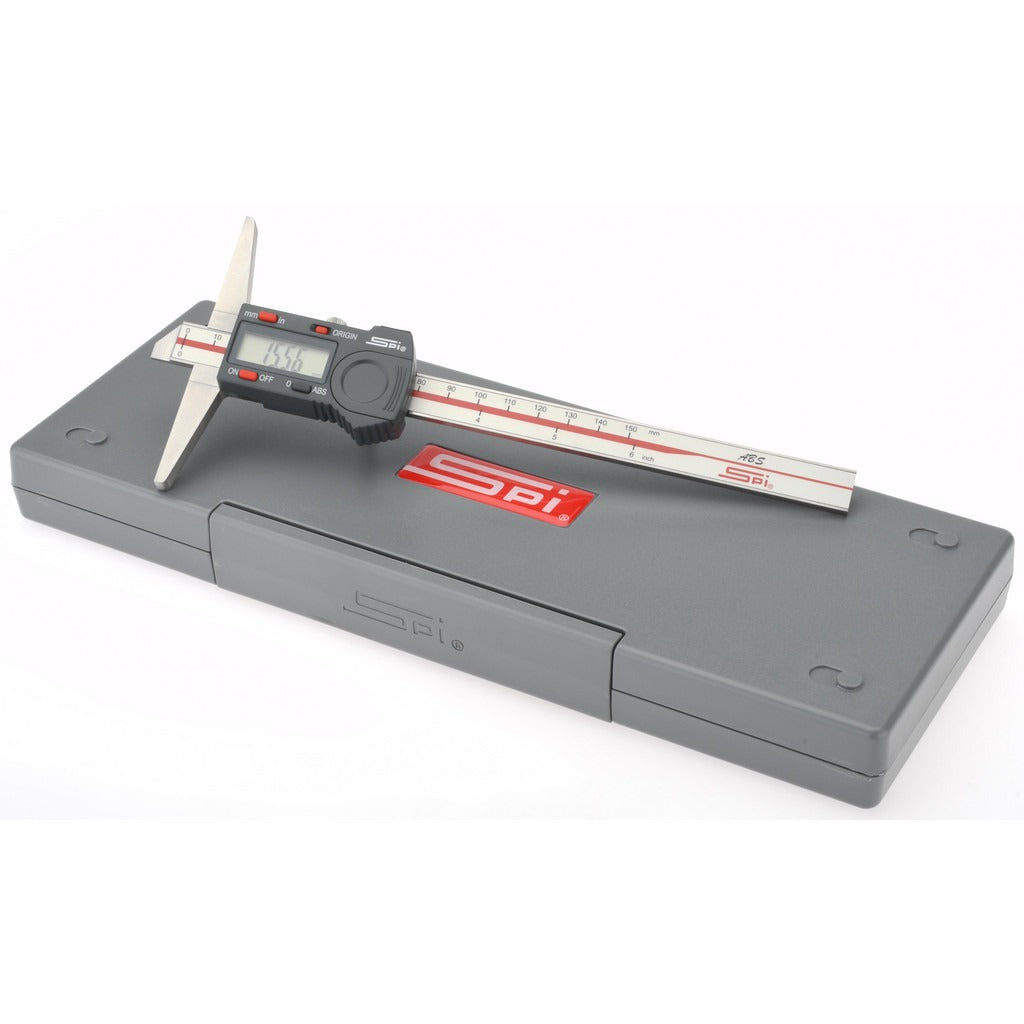

Spi MS160719033 Electronic Depth Gage 0-150mm Nist

Product Description

The SPI MS160719033 is a digital electronic depth gage designed for precise depth measurement in machining, manufacturing, and inspection environments. It measures from 0 to 150mm with a resolution of 0.0005 inches (0.01mm) and an accuracy of 0.001 inches (0.02mm), making it well suited for close-tolerance work. The gage features a linear scale embedded in the body and supports SPC/USB data output for direct integration with measurement software or quality systems. A 4-inch (101.60mm) base provides stable seating across a range of workpiece surfaces. Installed and used by machinists, toolroom technicians, and quality control inspectors.

This depth gage is appropriate for use in precision manufacturing, tool and die, metrology labs, and general inspection applications where reliable dimensional verification is required. The included NIST traceability certification supports use in quality management environments subject to ISO or similar calibration documentation requirements. The unit ships with a CR2032 battery installed and ready for immediate use.

Key Features

• Measurement range: 0 to 150mm (0.000 to approximately 6 inches)
• Resolution: 0.0005 inches / 0.01mm for fine discrimination between readings
• Accuracy: 0.001 inches / 0.02mm
• 4-inch (101.60mm) base length for stable contact across wider surfaces
• Linear scale embedded in body for consistent, repeatable readings
• SPC/USB data output for connection to statistical process control or PC-based measurement systems
• Automatic shut-off preserves battery life during idle periods
• NIST traceability certification included for calibration documentation requirements

Compatibility

Designed as a general-purpose electronic depth gage suitable for standard depth measurement applications across machining, inspection, and toolroom environments where a 0 to 150mm range and 4-inch base are appropriate.

Installation Notes

Electronic depth gages require no installation but should be handled and stored according to standard metrology practices. Before use, verify the gage zeroes correctly on a flat reference surface and confirm the battery is fully charged. The unit carries no water resistance rating and should be kept away from cutting fluids and coolants. Calibration verification against a known reference standard is recommended prior to use in documented quality programs.
