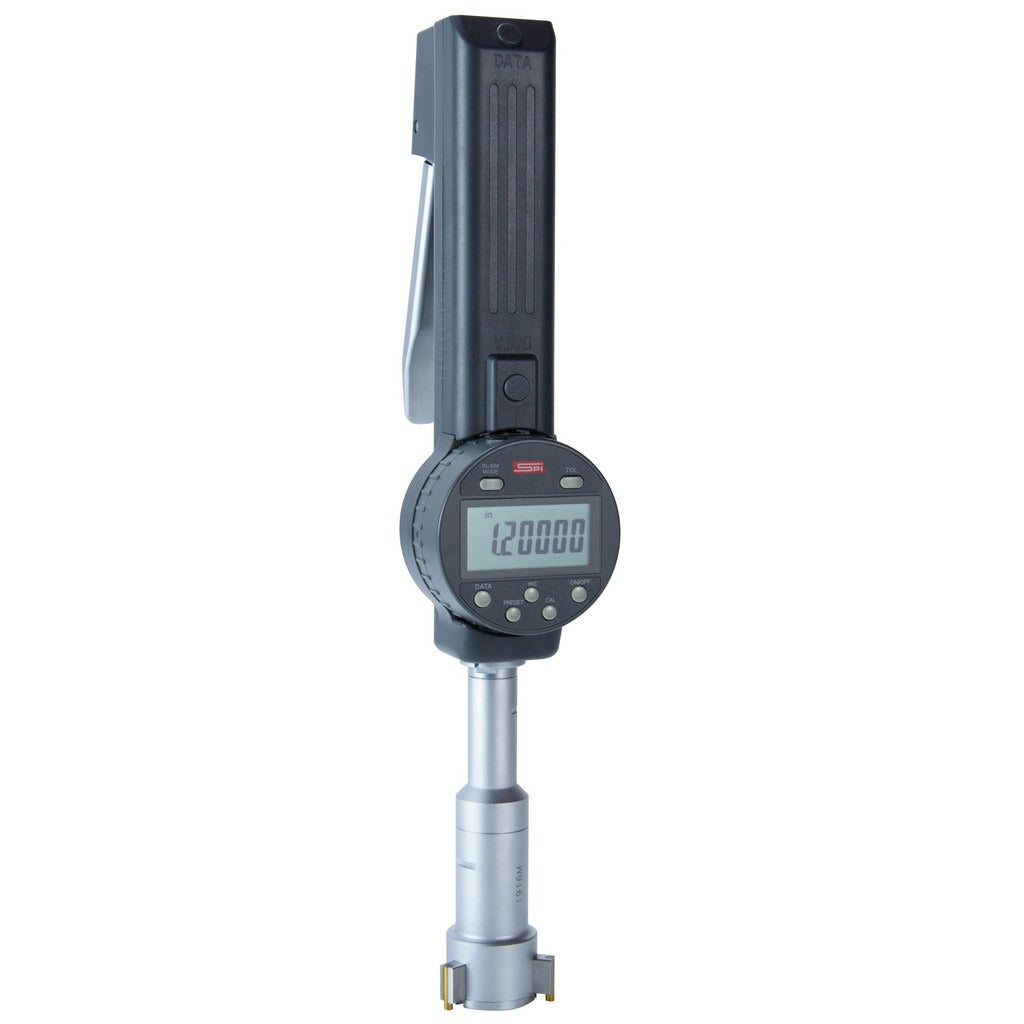

Spi CMS220623063 Three Point Bore Micrometer 1.2-1.6 in

Product Description

The SPI CMS220623063 is a three-point inside bore micrometer designed for precision internal diameter measurement in the 1.2 to 1.6 inch range. It delivers an accuracy of plus or minus 0.0002 inches and a resolution of 0.00005 inches, making it suitable for tight-tolerance bore inspection work. Built-in wireless Bluetooth data transmission allows measurements to be sent directly to a connected device without manual transcription. The measuring faces are carbide-tipped for wear resistance and long service life. A 330-degree rotating display lets technicians read measurement data at multiple angles, including near the bottom of blind holes.

This micrometer is used in precision machining, metrology labs, and quality control environments where accurate bore measurement is critical. The rotating spindle and positive lock nut allow repeatable, stable readings in production and inspection settings. The GO or NG judgment function and tolerance preset capability support pass or fail inspection workflows. A throat depth of approximately 4.13 inches allows reach into deeper bores. The instrument is calibrated to ASME B89.1.13 standards and includes a traceability certification, making it suitable for documented inspection processes in both shop floor and controlled metrology environments.

Key Features

• Measurement range of 1.2 to 1.6 inches with plus or minus 0.0002 inch accuracy
• Resolution of 0.00005 inches for high-precision bore inspection
• Built-in wireless Bluetooth data output for direct transfer to recording software or devices
• 330-degree rotating display for multi-angle readability, including blind hole access
• Carbide measuring faces for extended wear resistance
• Tolerance preset and GO or NG judgment function for pass or fail inspection workflows
• Calibrated to ASME B89.1.13 with traceability certification included

Compatibility

Designed as a precision bore measurement tool for internal diameter inspection within the 1.2 to 1.6 inch range; compatible with standard data collection software that accepts Bluetooth wireless input. Includes a setting ring and extension rod.

Installation Notes

This instrument is used by metrology technicians, machinists, and quality control inspectors. Before use, calibrate the micrometer using the included setting ring per ASME B89.1.13 procedures. Ensure the CR2450 lithium battery is properly installed before first use. Handle carbide measuring faces with care to avoid impact damage that could affect accuracy.
