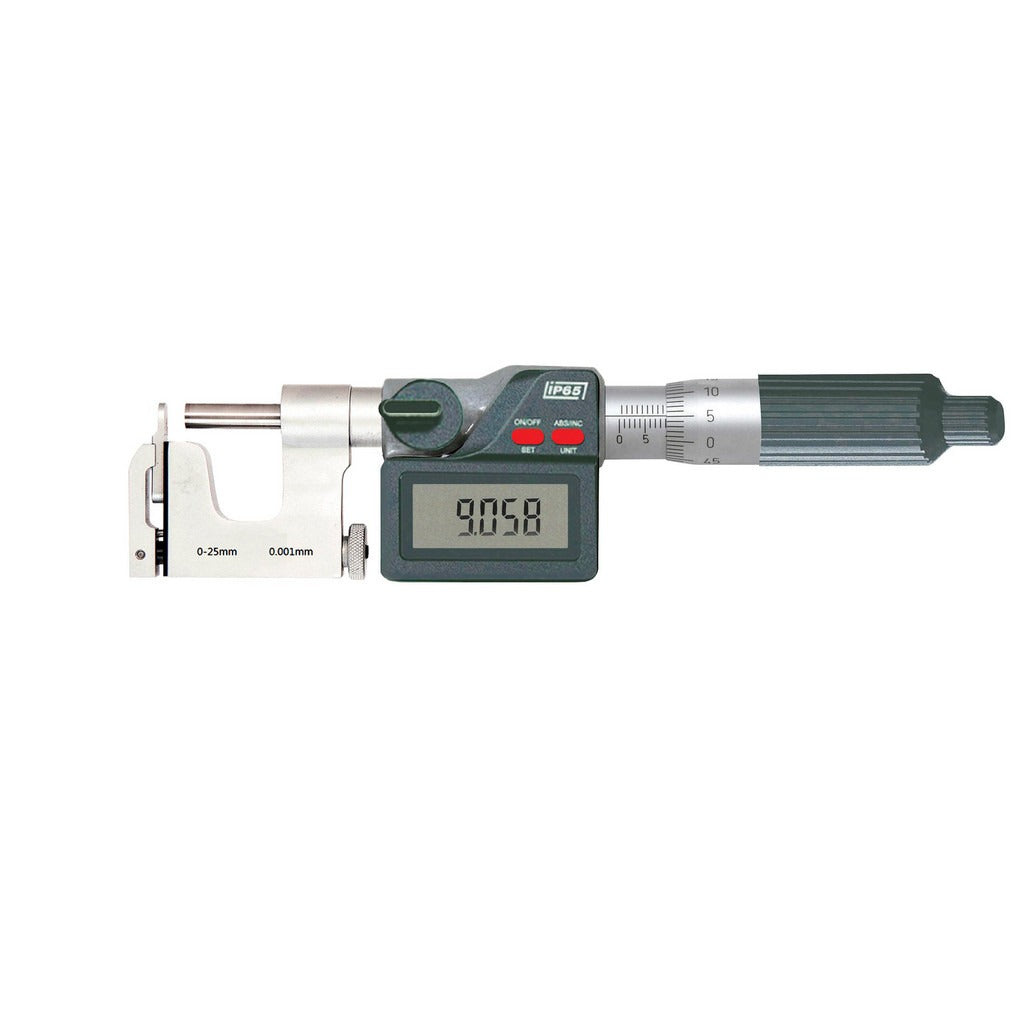

Spi CMS220519023 Electronic Multi-anvil Micrometer

Product Description

The SPI CMS220519023 is an electronic multi-anvil micrometer designed for high-precision dimensional measurement in industrial and metrology applications. It operates over a range of 0 to 1.00 inch, delivering a resolution of 0.00005 inch and an accuracy of 0.0001 inch. The ratchet thimble ensures consistent measuring force across readings, while the flat carbide anvil and SUS420F spindle material provide durability and resistance to wear. Data output capability makes this micrometer suitable for integration with SPC systems. Calibrated to ASME B89.1.13 standards, it is well-suited for quality control technicians, machinists, and metrologists working in precision manufacturing environments.

This micrometer is used in applications requiring fine-tolerance measurement, such as inspection of machined components, tooling verification, and in-process quality checks. The electronic readout with digital counter and rotating spindle design supports fast, repeatable measurements on flat surfaces. It ships in a plastic storage box, making it practical for bench use or transport between workstations in a production or inspection environment.

Key Features

• Electronic operation with digital counter and 0.00005 inch resolution
• Measurement range of 0 to 1.00 inch with 0.0001 inch accuracy
• Flat carbide anvil with SUS420F stainless spindle for wear resistance
• Ratchet thimble for consistent, repeatable measuring force
• Data output port for SPC or external data logging integration
• Calibrated to ASME B89.1.13; includes positive lock nut and plastic storage box

Compatibility

Designed as a precision measurement instrument for flat-surface applications in industrial inspection and quality control settings where electronic micrometer capability and data output are required.

Installation Notes

This instrument is used and serviced by metrology technicians or quality control personnel. Before use, zero the micrometer with the anvil and spindle in full contact per standard calibration procedure. Protect the carbide anvil and spindle faces from impact and contamination to maintain measurement integrity. Store in the included plastic box when not in use to prevent damage to precision surfaces.
