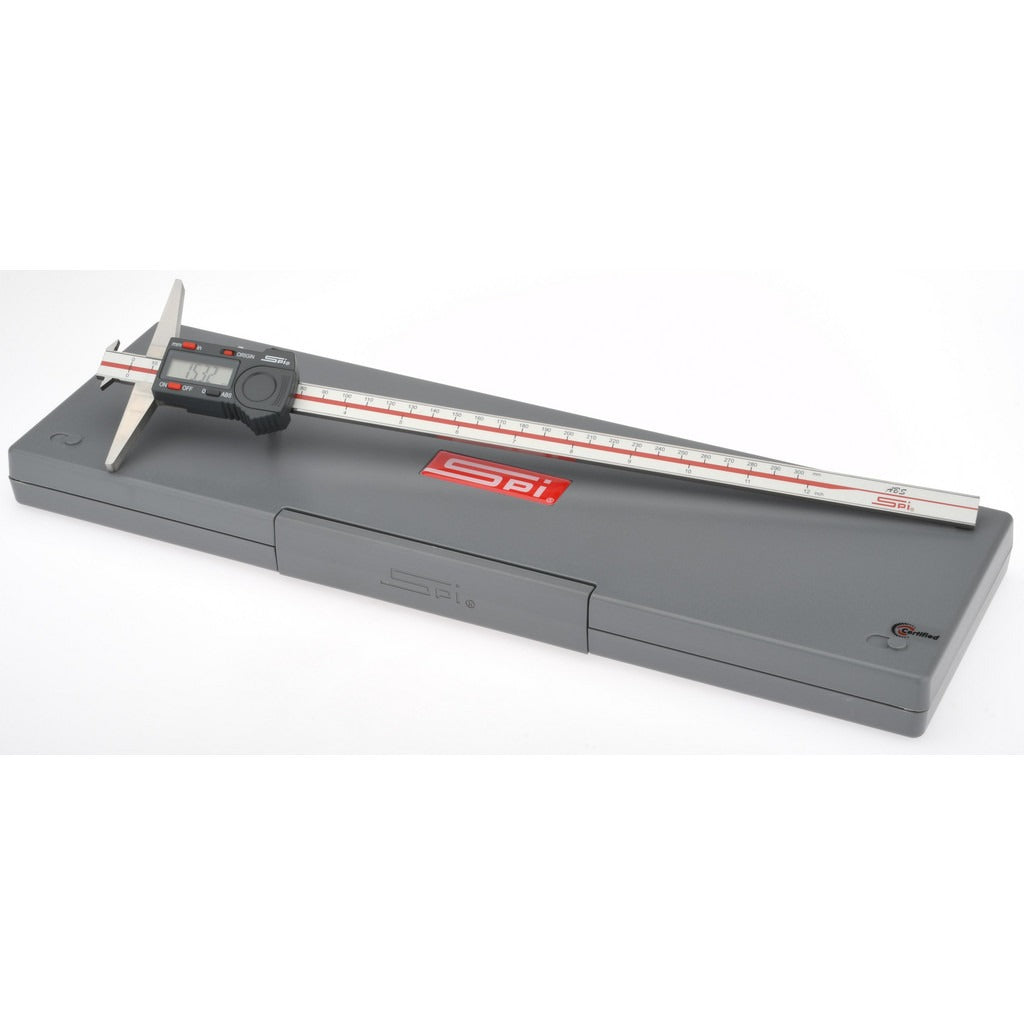

Spi CMS161101001 Electronic Depth Gage 0-300mm

Product Description

The SPI CMS161101001 is a stainless steel electronic depth gage designed for precise depth, step, and recess measurements in manufacturing, machining, and inspection environments. It measures from 0 to 300mm (approximately 11.81 inches) with an accuracy of 0.04mm (0.0015 inches) and a resolution of 0.01mm (0.0005 inches). The 100mm (3.94 inches) base length provides a stable reference surface across most workpieces. A digital readout delivers fast, repeatable readings without manual interpolation. This tool is installed and used by machinists, tool and die makers, quality control technicians, and precision metrology professionals.

The CMS161101001 is suited for use on shop floors, inspection benches, and production lines where consistent depth measurement is required. It handles a broad range of applications including bore depths, slot depths, and shoulder measurements on metal, plastic, and composite workpieces. The included hook accessory extends measurement reach for inside-groove and undercut features. The gage accepts a CR2032 battery and includes one battery at time of purchase. It is appropriate for both light production and precision inspection use.

Key Features

• Measurement range of 0 to 300mm (0 to approximately 11.81 inches)
• Accuracy of 0.04mm (0.0015 inches) for reliable precision measurement
• Resolution of 0.01mm (0.0005 inches) for fine reading increments
• 100mm (3.94 inches) stainless steel base for stable contact with workpiece
• Data output capability for SPC or digital recording integration
• Includes hook attachment for extended measurement applications
• Powered by CR2032 battery, included

Compatibility

Designed as a general-purpose electronic depth gage suitable for standard depth measurement tasks on flat and machined surfaces across a wide range of industrial and inspection applications.

Installation Notes

This gage requires no installation in the traditional sense but should be zeroed on a known flat reference surface before use. Keep the base and blade clean and free of chips or debris to maintain measurement accuracy. Avoid exposure to coolant or moisture as this unit carries no water resistance rating. Battery replacement uses a standard CR2032 coin cell; replace when the low-battery indicator activates to prevent measurement drift.
