Spi CMS160726103 Dial Test Indicator Kit 8 Pc

Product Description

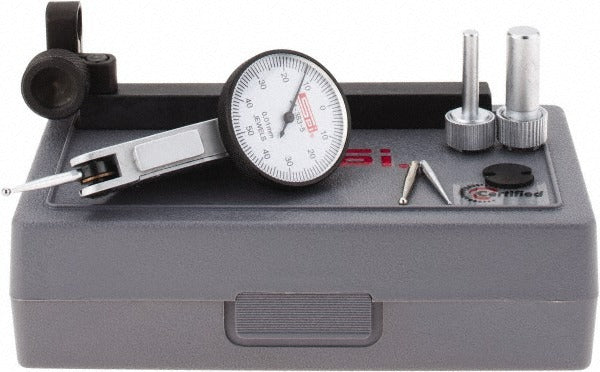

The SPI CMS160726103 is an 8-piece horizontal dial test indicator kit built for precision measurement work in machine shops, tool rooms, and inspection environments. The indicator features a 0-50-0 dial reading with a graduation of 0.01 mm per division and a full range of 1.00 mm per revolution, delivering an accuracy of 0.013 mm. The dial diameter measures 32 mm with a white face for clear readability. A fully jeweled movement and satin chrome finish contribute to long-term durability and reliable performance. This kit is intended for use by machinists, quality control technicians, and metrology professionals who require repeatable, fine-tolerance readings in both horizontal and vertical measurement setups.

This kit is suited for surface plate inspection, setup verification on mill or lathe work, and fixture alignment tasks in both production and toolroom environments. The dovetail stem design allows mounting in a wide range of holders and arms. The included height gage bar and universal clamp extend the kit's utility across multiple measurement scenarios. All components store in a fitted case for organized transport and protection between uses. A short form certificate of calibration is included, supporting use in quality-managed environments where traceability documentation is required.

Key Features

• Fully jeweled movement for smooth, repeatable indicator response
• 0-50-0 dial reading with 0.01 mm graduation and 1.00 mm range per revolution
• 0.080-inch ball diameter contact point for precise surface contact
• Dovetail stem with universal positioning for flexible mounting
• Satin chrome finish for corrosion resistance and professional appearance
• Includes short form certificate of calibration for quality traceability
• Complete 8-piece kit stored in a fitted case

Compatibility

Designed for use with standard dovetail stem holders and arms; the included 5/32-inch and 3/8-inch diameter dovetail extensions broaden mounting compatibility across common indicator stands, magnetic bases, and height gage setups.

Installation Notes

Installation and setup should be performed by a qualified machinist or metrology technician familiar with dial indicator mounting and zeroing procedures. Secure all clamp connections firmly before taking measurements to prevent indicator drift. Avoid contact between the indicator body and rotating workpieces or moving machine components. Handle the contact point and jeweled movement with care to preserve calibration integrity.
