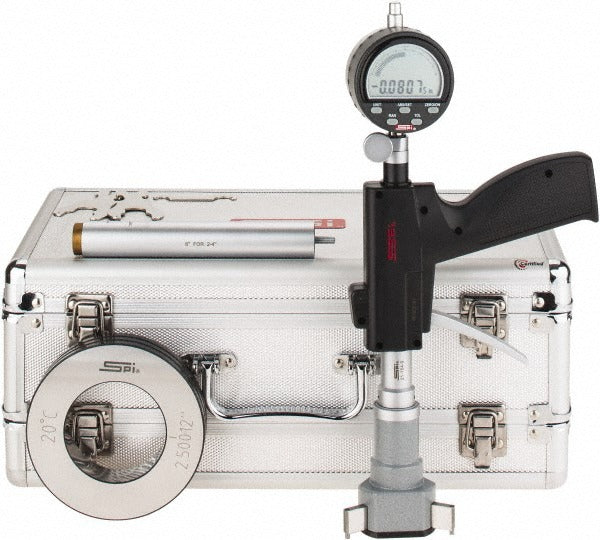

Spi CMS160712061 Electronic Bore Gage 2.5-3 in

Product Description

The SPI CMS160712061 is an electronic bore gage designed for precision internal diameter measurement in machining, manufacturing, and quality control applications. It covers a measuring range of 2.5 to 3 inches with a resolution of 0.0001 inches and accuracy up to 0.0002 inches. The gage features a 3-point solid carbide head that contacts the bore wall at three equidistant points, delivering consistent, repeatable readings. A pistol grip handle supports single-handed operation, and the display is readable from both right and left hand positions. Metrology technicians and machinists install and use this instrument in shop floor and inspection environments.

This bore gage is suited for precision measurement of bored holes and cylindrical bores in the 2.5 to 3 inch range. It is appropriate for use in job shops, production machining operations, and dimensional inspection stations where tight tolerances must be verified. The included indicator, fitted carrying case, and CR2032 battery allow the unit to be put into service immediately upon receipt. Gage depth reaches 4.48 inches, accommodating moderately deep bores. Automatic shut-off extends battery life during high-volume inspection work.

Key Features

• Measuring range of 2.5 to 3 inches with 0.0001 inch resolution and up to 0.0002 inch accuracy
• 3-point solid carbide contact head for wear resistance and consistent bore engagement
• Pistol grip with single-handed operation and right and left hand display viewing
• Gage depth of 4.48 inches for access into deeper bores
• Indicator included; furnished in a fitted carrying case ready for immediate use
• Automatic shut-off and CR2032 battery included; 2-year warranty

Compatibility

Designed as an OEM-style precision measuring instrument for internal diameter inspection of bores in the 2.5 to 3 inch range in machining and quality control applications.

Installation Notes

Metrology technicians and machinists use electronic bore gages in inspection and shop floor environments. Before use, zero the gage against a calibrated ring gage or setting master of known diameter to establish a reliable reference point. Keep contact heads free of chips, coolant, and debris, and store the instrument in its fitted case when not in use to protect the carbide contacts. No power shutdown of external equipment is required, but the workpiece should be at ambient temperature before measurement to avoid thermal expansion errors.
