Spi CMS150410011 Stainless Steel Dial Height Gage 20 in

Product Description

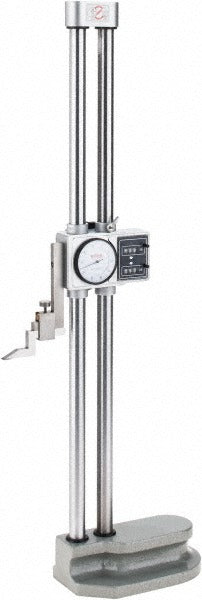

The SPI CMS150410011 is a 20-inch stainless steel dial height gage designed for precision dimensional measurement in machine shops, quality labs, and industrial inspection environments. It features a dial and counter display with 0.001-inch graduation and an accuracy of 0.002 inches, making it suitable for high-tolerance layout and inspection work. The unit ships NIST traceable certified, meaning calibration documentation is included and ready for use in quality management systems. Fine adjustment capability is built in for controlled, repeatable positioning. This instrument is typically handled by machinists, QC technicians, and metrology professionals.

The CMS150410011 is suited for surface plate work in both production and inspection settings. The base-mounted arm style provides stable, consistent measurement from a flat reference surface. The dial and counter display gives direct, easy-to-read readings without the need for a separate readout device. It is a practical tool for scribing lines, checking workpiece height, and verifying part dimensions against engineering tolerances in a shop or lab environment.

Key Features

• 20-inch measuring range for tall workpiece inspection
• 0.001-inch graduation for fine measurement resolution
• 0.002-inch accuracy across the full measuring range
• Dial and counter display for direct, unambiguous readings
• Fine adjustment mechanism for precise, controlled positioning
• NIST traceable calibration certificate included
• Stainless steel construction for durability and corrosion resistance

Compatibility

Designed as an OEM-style precision height gage for use on standard surface plates in machine shop, quality control, and metrology applications.

Installation Notes

Height gages of this type are set up by metrology technicians or machinists on a clean, flat surface plate. Zero the gage at the reference surface before taking measurements, and handle the dial mechanism carefully to avoid shock or impact that could affect calibration. Store in the provided case when not in use to protect the measuring surfaces and dial assembly.
