Spi 98-274-4 Machine Setup Gage Level 0-360 Degree

Product Description

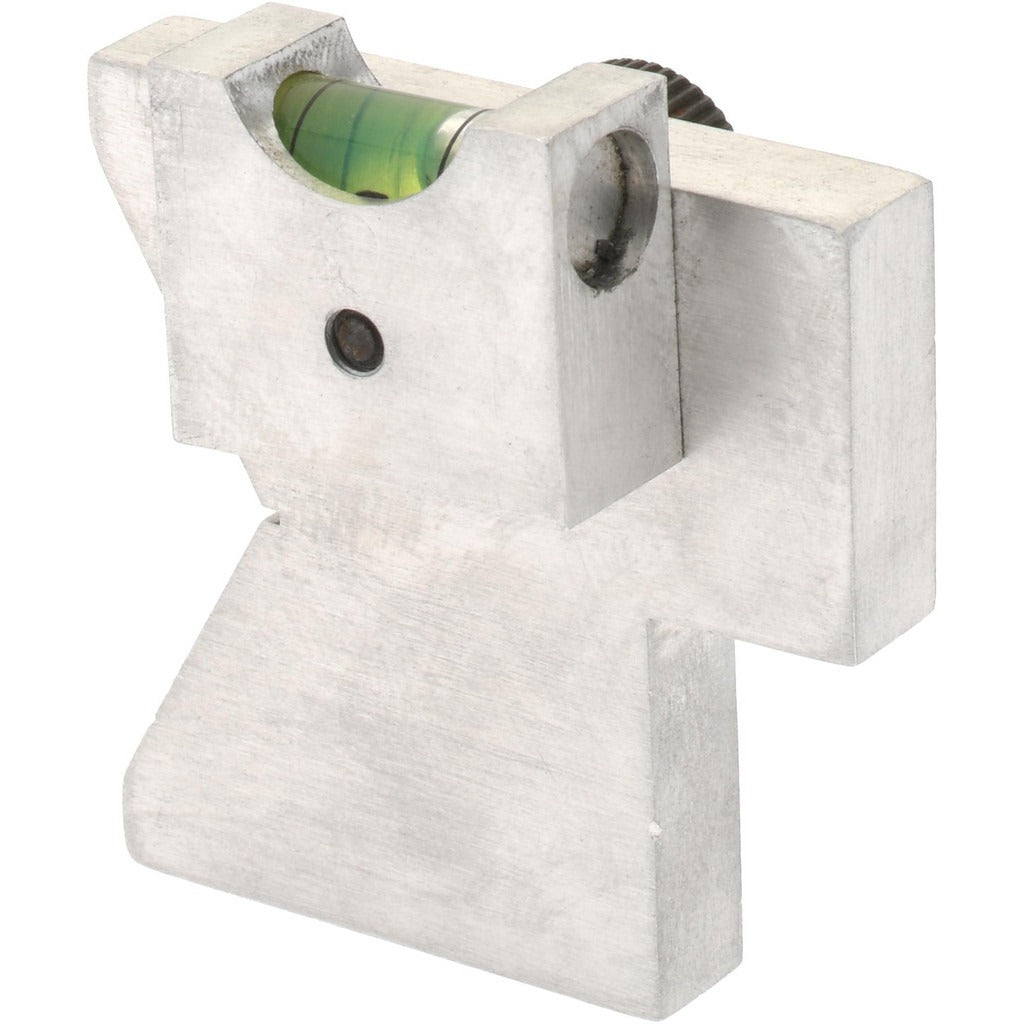

The SPI 98-274-4 is a machine setup gage level designed to assist machinists and precision tradespeople in verifying and establishing accurate angular positions during equipment setup and alignment tasks. This instrument supports a full adjustable angle range from 0 to 360 degrees, making it suitable for a wide variety of leveling and angle-verification applications on machine tools and workholding fixtures. At 0.15 pounds, the unit is lightweight and easy to handle on the shop floor. It is typically used by machinists, tool-and-die makers, and maintenance technicians who require reliable angular reference during setup operations.

This gage level is well suited for use in precision machining environments, including job shops, production facilities, and maintenance departments. It supports setup tasks on mills, lathes, surface grinders, and similar machine tools where accurate angular positioning is critical before commencing a cut or operation. The full 360-degree range of adjustment allows the user to set reference angles across all four quadrants without repositioning the instrument.

Key Features

• Full 0 to 360 degree adjustable angle range for versatile setup applications
• Lightweight construction at 0.15 pounds for easy one-hand use on the machine
• Designed for machine tool setup, leveling, and angular alignment tasks
• Compact form factor suitable for use in tight setup spaces

Compatibility

Designed as a general-purpose machine setup gage level suitable for use on a broad range of machine tools and precision workholding applications where angular reference and leveling verification are required.

Installation Notes

This instrument is typically used by machinists and maintenance technicians during machine setup and does not require permanent installation. Ensure the reference surface is clean and free of chips or debris before placing the gage level to achieve an accurate reading. No special tools are required for use, but the mating surface should be wiped down with a clean cloth before contact. Follow all applicable shop safety procedures and power down or lock out the machine before performing setup or alignment work.
