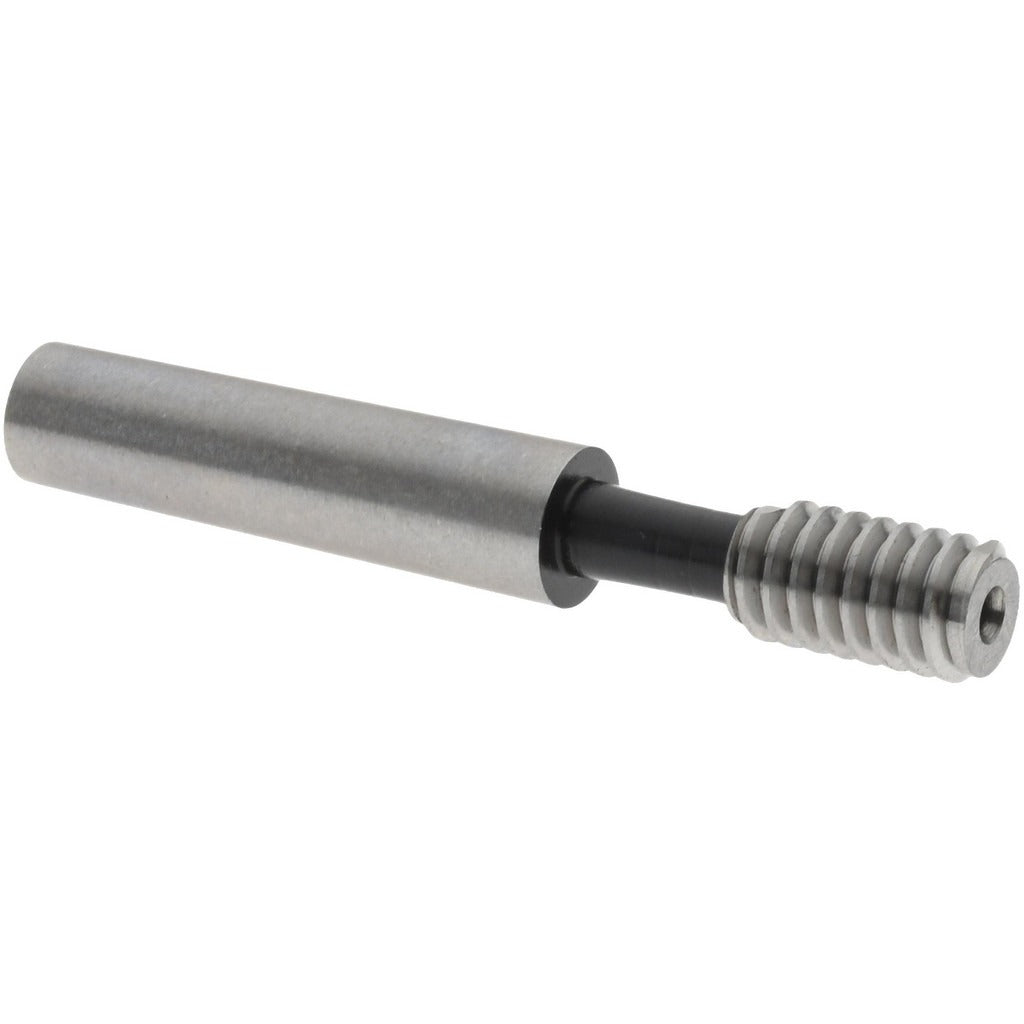

Spi 34-234-5 Plug Thread Gage 8-32 6H Single End No Go

Product Description

The SPI 34-234-5 is a single-end No Go plug thread gage designed to verify internal thread rejection limits on 8-32 unified threads to the 6H tolerance class. Made from steel, this gage checks whether a tapped hole has been cut beyond the acceptable thread tolerance — if the No Go member enters the threaded bore, the part fails inspection. It is used in precision machining, quality control, and assembly environments where threaded fastener fit must be verified to ANSI and NIST standards. A size 0 handle is required for use but is not included with this gage. Traceability certification to NIST is included.

This gage is suited for inspection of 8-32 tapped holes in light manufacturing, aerospace component fabrication, electronics assembly, and general precision machining applications. The 6H classification designates a standard internal thread tolerance suitable for most commercial and industrial fastener applications. Machinists, quality control technicians, and metrology lab personnel are the typical users. The gage is appropriate for in-process and final inspection stations where thread conformance to ANSI standards is required.

Key Features

• No Go plug thread gage — rejects threads cut beyond the 6H tolerance limit
• 8-32 unified thread size for standard machine screw applications
• 6H tolerance class per ANSI standards
• NIST traceability certification included for documented calibration compliance
• Steel construction for durability in production inspection environments
• Single-end design — size 0 handle required, sold separately

Compatibility

Designed for use with a size 0 thread gage handle, sold separately. Intended for inspection of 8-32 internally threaded components to ANSI 6H tolerance specifications.

Installation Notes

Thread plug gages are handled and used by quality control technicians and machinists — no power tools or electrical shutoff procedures apply. Insert the gage by hand only; never force a plug gage into a threaded hole, as this can damage the gage or the part. Store gages in a clean, dry environment and handle with care to avoid nicking the thread form. Periodic recalibration against NIST-traceable standards is recommended to maintain inspection integrity.
