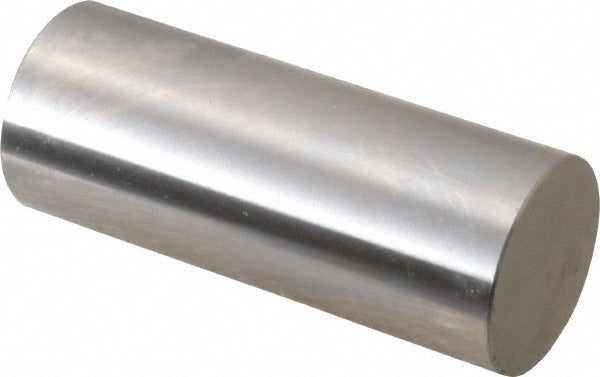

Spi 29-802-6 Class Zz Plus Plug Gage 0.802 in

Product Description

The SPI 29-802-6 is a Class ZZ Plus plug gage used to verify the inside diameter of machined holes and bores. Measuring at a nominal diameter of 0.802 inches with a tolerance of 0.0002 inches, this gage delivers the precision required for quality control inspection in machine shops, manufacturing facilities, and tool rooms. The steel construction provides durability and resistance to wear under repeated use. It is typically handled by machinists, quality inspectors, and tool and die professionals performing go/no-go acceptance checks on production parts.

This plug gage is suited for inspecting drilled, reamed, or bored holes where tight dimensional control is critical. At 0.802 inches nominal diameter, it fits a common range of precision machined components encountered in industrial and manufacturing environments. Its Class ZZ Plus classification indicates it meets the standard tolerancing requirements for working gages used in general inspection applications. The compact size and light weight of 0.2 pounds make it easy to handle during routine inspection tasks on the shop floor or at a quality station.

Key Features

• Nominal measurement diameter of 0.802 inches for precise hole verification
• Class ZZ Plus tolerance rating at 0.0002 inches for reliable go/no-go inspection
• Steel construction for wear resistance and long service life
• Lightweight at 0.2 pounds for easy handling during inspection
• Single-piece packaging with a minimum order quantity of 1

Compatibility

Designed as a working-class plug gage for general inspection of machined holes and bores with a nominal inside diameter of 0.802 inches in manufacturing and quality control environments.

Installation Notes

Plug gages are handled by qualified machinists or quality inspection personnel. Store the gage in a protective case away from moisture and contaminants to maintain accuracy. Clean the gage and the bore being inspected before use to prevent false readings or surface damage. Periodic calibration against a certified master gage is recommended to ensure continued accuracy.
