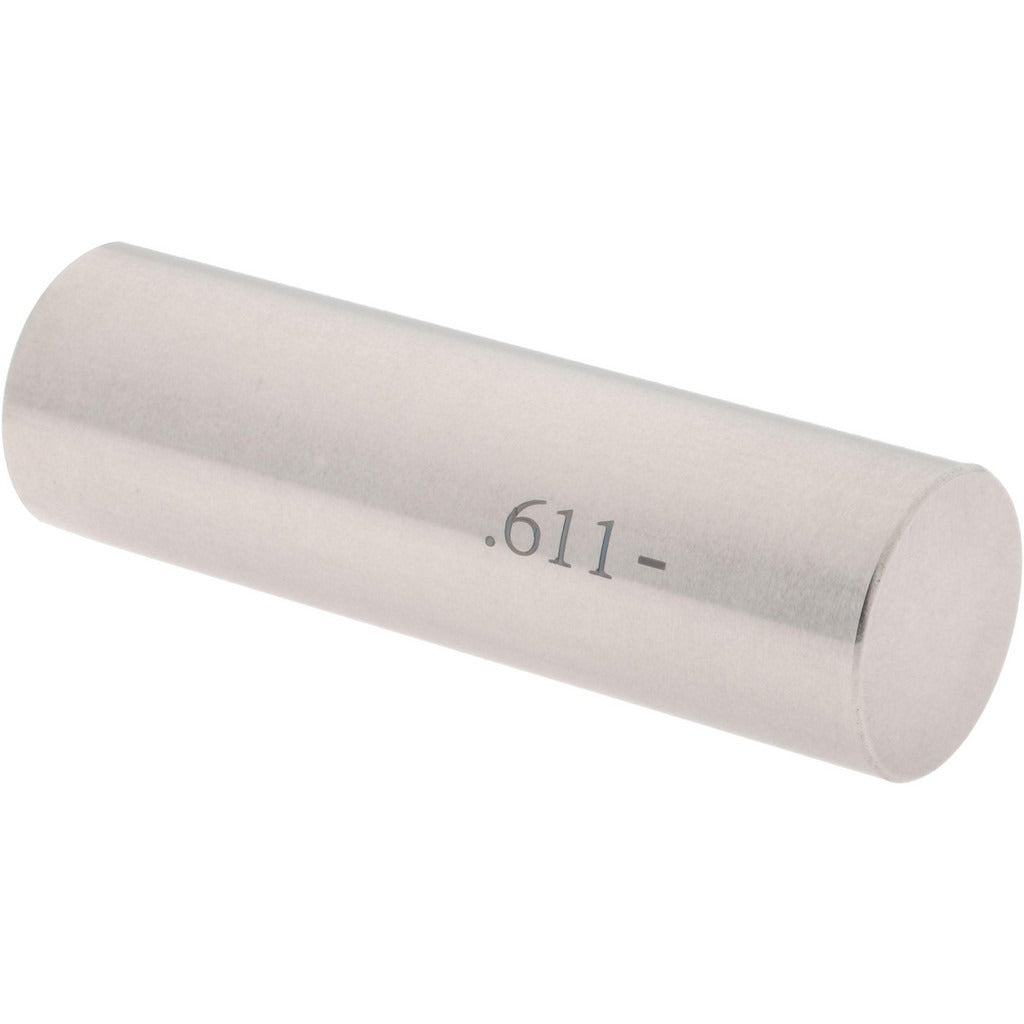

Spi 19-611-3 Class Zz Minus Plug Pin Gage 0.611 in

Product Description

The SPI 19-611-3 is a Class ZZ minus plug pin gage with a 0.611-inch nominal diameter, manufactured from steel for reliable dimensional inspection work. It is used to verify hole sizes and bore diameters to tight tolerances, with a minus tolerance of 0.0002 inches ensuring the gage stays within the lower boundary of the specified dimension. This tool is a standard choice for quality control technicians, machinists, and precision measurement professionals performing go/no-go inspection tasks in manufacturing and fabrication environments.

This plug gage is suited for inspection of drilled, reamed, or bored holes in production and job-shop settings. Class ZZ gages are commonly applied in less critical or general-purpose inspection work where tolerance requirements are moderate. The 0.611-inch diameter targets a specific nominal hole size, making this gage appropriate for incoming inspection, in-process quality checks, and final verification of machined components.

Key Features

• Class ZZ minus tolerance designation for general-purpose hole inspection
• 0.611-inch nominal diameter for precise bore verification
• Minus tolerance of 0.0002 inches keeps gage within lower dimensional boundary
• Steel construction for durability and dimensional stability
• Compact and lightweight at 0.2 pounds for easy handling

Compatibility

Designed as a general-purpose plug pin gage for verifying 0.611-inch nominal diameter holes in machined parts and components across a range of manufacturing applications.

Installation Notes

Plug pin gages are handled and used by quality control technicians and machinists. Store the gage in a clean, dry environment and handle with care to prevent surface damage that could affect measurement accuracy. Do not force the gage into a hole; apply only light, consistent hand pressure during inspection. Clean the gage and the bore being inspected before use to ensure accurate readings.
