Spi 19-515-6 Class Zz Minus Plug Pin Gage 0.515 in

Product Description

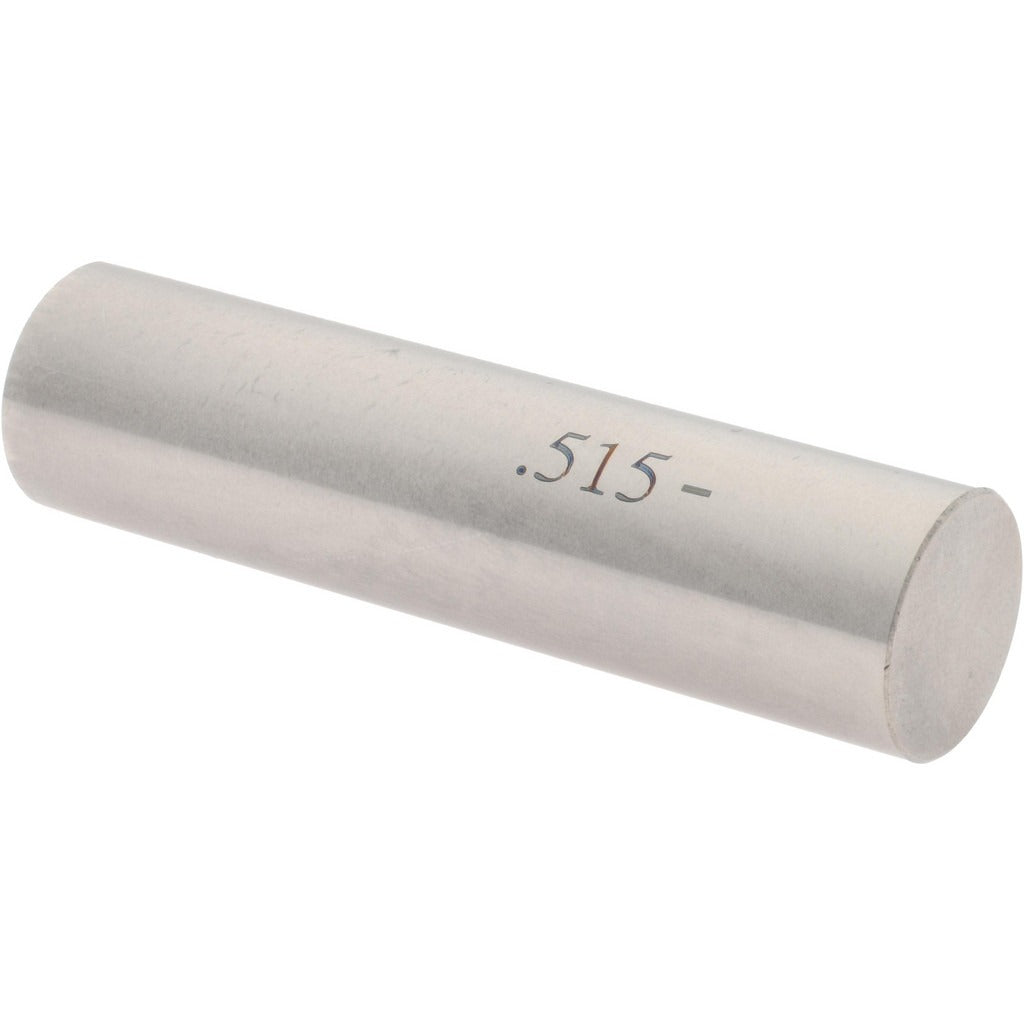

The SPI 19-515-6 is a Class ZZ minus plug pin gage machined from steel for dimensional inspection of holes and bores. It measures 0.515 inches in diameter and carries a minus tolerance of 0.0002 inches, meaning the gage is manufactured to the low side of the nominal dimension. Class ZZ is the standard tolerance grade for general-purpose go/no-go inspection work in production and quality-control environments. Machinists, tool-and-die makers, and quality technicians use plug gages to verify bore diameter conformance quickly and repeatably without requiring a measuring instrument readout.

This gage is suited for use in machine shops, manufacturing facilities, and maintenance departments where hole diameter verification is part of a standard inspection routine. It fits into go/no-go gage handle sets for single-end or double-end use. Applications include checking drilled, reamed, or bored holes in metal, plastic, and composite workpieces where dimensional accuracy is critical to part function or assembly fit.

Key Features

• Class ZZ tolerance grade for general-purpose production inspection
• Minus plug configuration — manufactured to the low side of nominal diameter
• 0.515 inches nominal diameter for direct hole size verification
• Tolerance of 0.0002 inches for reliable go/no-go discrimination
• Steel construction for durability in shop environments
• Compatible with standard gage handle sets for efficient single-hand operation

Compatibility

Designed as a standard replacement or addition to Class ZZ plug gage sets used in general-purpose dimensional inspection applications. Compatible with gage handles sized for 0.515-inch diameter pin gages.

Installation Notes
