Spi 14-413-9 Indicator Positioner Holder 260 Lb Magnetic

Product Description

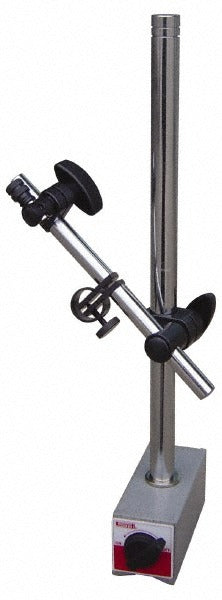

The SPI 14-413-9 is a magnetic-base indicator positioner holder designed for precision measurement setups in machine shops, manufacturing environments, and metrology applications. It features a 260-pound magnetic pull force and a fine-adjustment mechanism that allows precise positioning of dial indicators and similar gauging instruments. The assembly includes a heavy-duty arm with a post-and-adjustable-rod configuration, giving the technician multiple axes of movement. At 17 inches overall length, it reaches across most standard workpiece setups. Machinists, quality control technicians, and toolroom professionals install this type of holder routinely in CNC and manual machining environments.

This holder is suited for use on any ferromagnetic machine surface, including surface plates, lathe beds, mill tables, and granite or steel inspection tables where a magnetic base can seat securely. The rectangular flat base provides stable contact and resists tipping under arm extension loads. It is appropriate for both production-floor and inspection-room use where repeatability and rigid indicator mounting are required. The fine-adjustment feature is particularly useful when zeroing a dial indicator or test indicator to a reference surface.

Key Features

• 260-pound magnetic pull force for rigid, vibration-resistant holding on ferromagnetic surfaces
• Fine-adjustment mechanism allows precise final positioning of the indicator
• Post-and-adjustable-rod arm style provides multi-axis reach and flexibility
• 17-inch overall length extends reach across typical workpiece setups
• Rectangular flat magnetic base included — no separate base purchase required
• Heavy-duty arm construction supports dial indicators and test indicators without deflection

Compatibility

Designed as a universal magnetic-base indicator holder compatible with standard dial indicators and test indicators that mount via conventional dovetail or post-style indicator stems commonly used in machining and inspection applications.

Installation Notes
