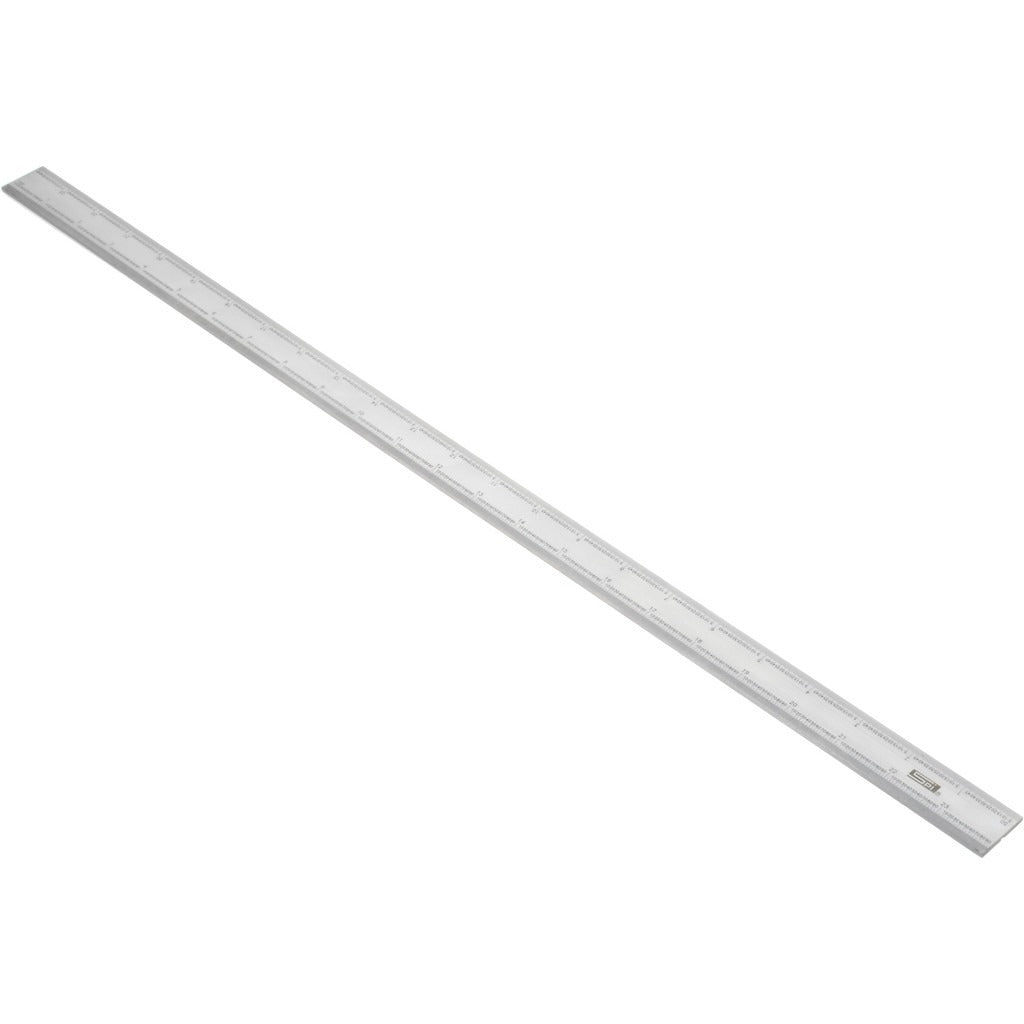

Spi 13-460-1 Combination Square Blade 24 in 16R

Product Description

The SPI 13-460-1 is a 24-inch replacement blade designed for use with combination squares in layout and measurement applications. Finished with a baked enamel coating for corrosion resistance and long-term legibility, this blade carries 16R graduation markings at 1/100, 1/64, 1/50, and 1/32 inch intervals. It is suited for machinists, toolmakers, pipefitters, and other trade professionals who require precise scribing, squaring, and depth measurement in fabrication or maintenance work. The blade weighs 1 pound and ships as a single unit.

This blade is used in precision layout work across metalworking, pipefitting, and general fabrication environments. Its 16R graduation series covers four common fractional and decimal scales on a single blade, reducing the need to switch tools during layout. It fits standard combination square heads and is appropriate for both shop and field use where accurate linear measurement is required.

Key Features

• 24-inch blade length for extended layout and measurement reach
• 16R graduation series includes 1/100, 1/64, 1/50, and 1/32 inch scales
• Baked enamel finish for corrosion resistance and marking clarity
• Compatible with standard combination square heads
• Single-piece packaging for individual replacement use

Compatibility

Designed as a replacement blade for standard combination square sets accepting 24-inch blades. No specific head or set model compatibility was provided by the manufacturer for this part.

Installation Notes

Installation is performed by the end user or a qualified tradesperson familiar with combination square assemblies. Loosen the locking screw on the combination square head before removing the existing blade, then slide the 13-460-1 blade into the head channel and retighten the lock. Verify blade seating and squareness against a known reference surface before use. No power tools or special equipment are required for blade replacement.
