Spi 13-188-8 Depth and Angle Gage 0-6 in 30-60 Deg

Product Description

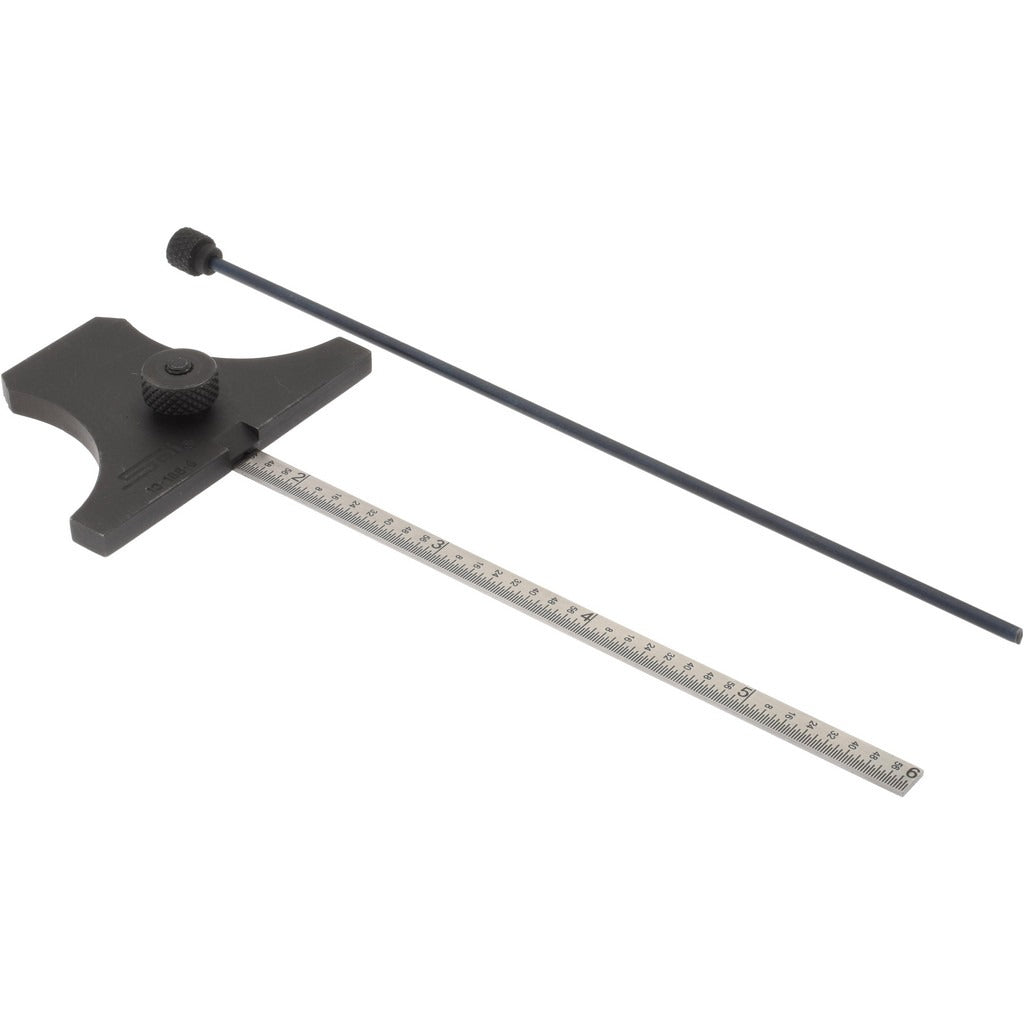

The SPI 13-188-8 is a combination depth and angle gage designed for precise measurement of depth and bevel angles in machining, fabrication, and layout work. The stainless steel rule measures from 0 to 6 inches, and the hardened steel head covers an angle measurement range of 30 to 60 degrees with 60-degree angle graduation. The rule is 7/32 inch wide and graduates in 1/64 inch and 1/32 inch increments. The base measures 2-1/2 inches in length, providing a stable reference surface during use. This tool is suited for machinists, toolmakers, and fabricators who require accurate depth and angle readings in a single compact instrument.

This gage is appropriate for use in machine shops, fabrication facilities, and precision layout applications. It is well-suited for checking chamfers, bevels, and countersink angles alongside depth measurements on workpieces. The hardened steel head resists wear during repeated use on metal surfaces, and the stainless steel rule holds graduation accuracy over time. Typical users include machinists, tool and die makers, and quality control technicians working with ferrous and non-ferrous materials.

Key Features

• Rule measurement range: 0 to 6 inches, graduated in 1/64 inch and 1/32 inch increments
• Angle measurement range: 30 to 60 degrees with 60-degree angle graduation
• Hardened steel head for wear resistance and long service life
• Stainless steel rule for corrosion resistance and graduation durability
• 2-1/2 inch long base provides a stable reference during measurement
• Compact single-tool design handles both depth and angle layout tasks

Compatibility

Designed as a general-purpose depth and angle gage for use in precision machining, metal fabrication, and layout applications where combined depth and bevel measurement is required.

Installation Notes

No power source or mounting is required for this hand tool. Before use, inspect the rule and head for burrs or damage that could affect measurement accuracy. Keep the base clean and flat against the reference surface when taking readings. Store in a protective case or pouch to prevent damage to the graduated rule.
