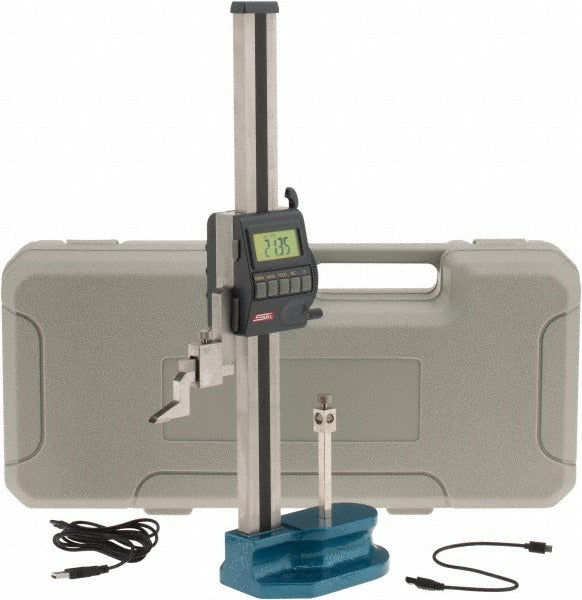

Spi 11-959-4 Electronic Height Gage 300mm Lcd Usb

Product Description

The SPI 11-959-4 is an electronic height gage designed for precise vertical measurement in machine shops, toolrooms, and quality control environments. It delivers a resolution of 0.0005 inches and an accuracy of 0.001 inches, making it suitable for demanding dimensional inspection work. The unit features a large LCD display for easy reading and outputs measurement data via USB, allowing direct transfer to a PC or data logger. A smooth slider feed wheel provides controlled column travel, and the gage supports both inch and metric readouts for flexible use across applications. Machinists, metrologists, and QC technicians are the primary installers and users.

This height gage is used on surface plates for layout, inspection, and part verification in both production and tool-and-die settings. It is well suited for measuring step heights, scribing lines, and checking part features against engineering tolerances. The 300 mm maximum measurement range accommodates a wide variety of workpiece sizes common in general machining and manufacturing environments. The included fitted case makes it practical for field calibration work or transport between inspection stations.

Key Features

• 0.0005 inch resolution for high-precision vertical measurement
• 0.001 inch accuracy across the full measurement range
• Large LCD display with inch/metric conversion capability
• USB data output for direct PC or data collection system integration
• Smooth slider feed wheel for controlled, repeatable column movement
• Manual on/off and zero-setting functions for fast, flexible operation
• Includes fitted carrying case and CR2032 battery

Compatibility

Designed for use on standard surface plates in toolroom, quality control, and production inspection environments. No specific equipment compatibility data was provided for this item.

Installation Notes

Setup and use of this height gage should be performed by a qualified machinist, metrologist, or QC technician familiar with surface plate measurement practices. Before use, ensure the surface plate is clean and level and the gage base is free of burrs or debris that could affect measurement accuracy. Do not drop or strike the column assembly, as impact can affect calibration. Follow the manufacturer guidelines for battery replacement and periodic calibration verification.
