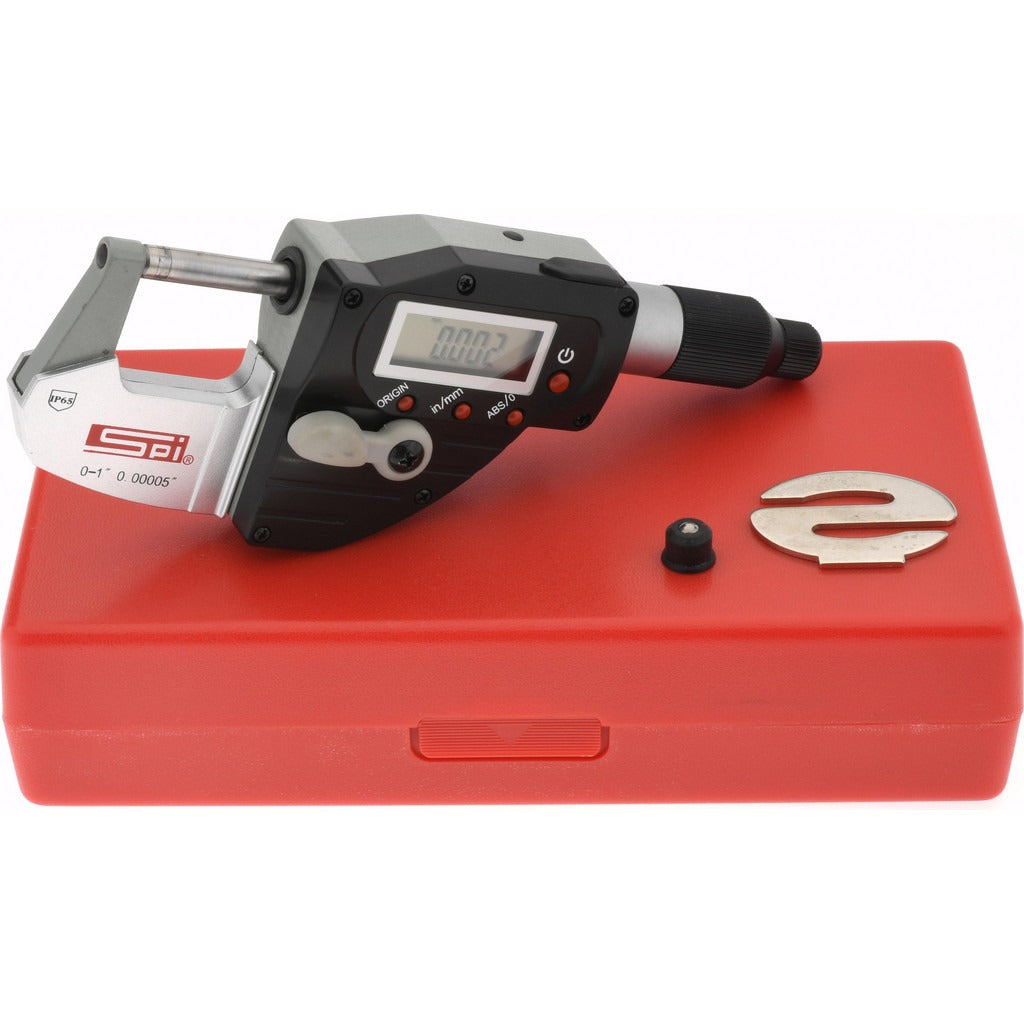

Spi 10-800-1 Electronic Outside Micrometer 1 Inch IP65

Product Description

The SPI 10-800-1 is an electronic outside micrometer built for precision measurement in demanding shop and field environments. It measures up to 1 inch with a resolution of 0.000050 inches and an accuracy of 0.000160 inches, making it suitable for close-tolerance inspection work. The measuring faces are carbide-tipped for durability and long service life. An IP65 rating protects the instrument against dust ingress and low-pressure water jets, allowing use in typical machine shop conditions. A sliding thimble design and automatic shut-off feature round out the core functionality. This instrument is used by machinists, quality technicians, and precision measurement professionals.

The 10-800-1 is appropriate for standard outside diameter and thickness measurements in manufacturing, tool and die, and quality control environments. The 1-inch throat depth accommodates a wide range of workpiece geometries. The instrument ships with two CR2032 batteries, a ball attachment, and a wrench, supporting immediate use out of the box. It is suited to both production floor and inspection room applications where digital readout and moisture resistance are required.

Key Features

• Resolution of 0.000050 inches for high-precision measurement
• Accuracy of 0.000160 inches (0.0040 mm)
• Carbide-tipped measuring faces resist wear during repeated use
• IP65-rated housing resists dust and water splashing
• Sliding thimble with automatic shut-off for battery conservation
• Includes two CR2032 batteries, ball attachment, and wrench

Compatibility

Designed as a standard outside micrometer for general precision measurement applications up to 1 inch; consult your inspection process requirements to confirm suitability for your specific workpiece and tolerance specification.

Installation Notes

Outside micrometers are calibrated instruments and should be handled and stored according to standard metrology practices. Before use, verify the zero setting with the included wrench and reference standard if provided. Avoid dropping or storing near strong magnetic fields or heat sources, which can affect calibration. Calibration and maintenance should be performed by a qualified metrology technician in accordance with your facility quality program.
