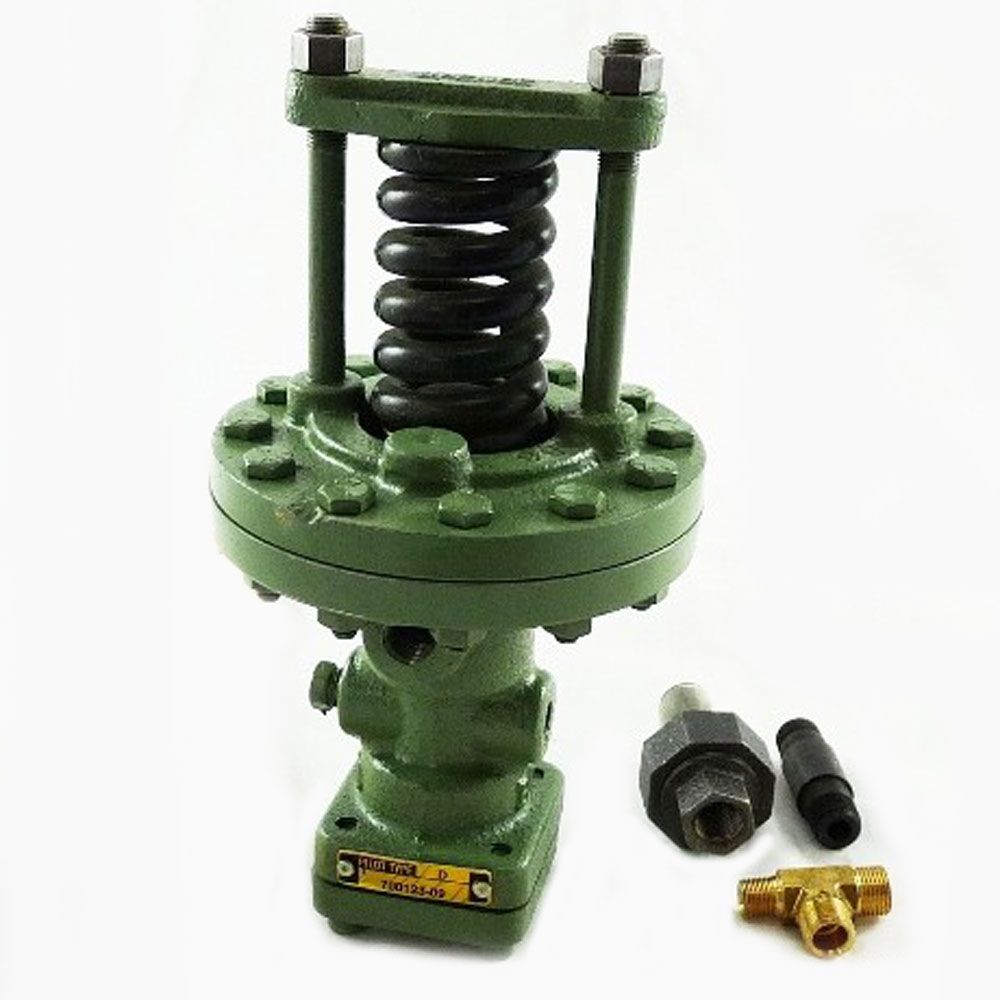

Spence P-D-C1A1NS D Cast Iron Flgd Pressure Pilot for 150 psi WSP

Product Description

The Spence P-D-C1A1NS D pressure pilot operates within a twenty to one hundred fifty pound pressure range. It is designed for use with E Series main valves, allowing for controlled steam flow by sensing pressure changes. This pressure pilot uses a pressure spring to open and close the main valve. The adjustable pressure range can be set using a nut located at the top of the pilot.

• Compatible with E Series main valves
• Adjustable pressure range from 20 to 150 psi
• Constructed with durable cast iron

Product Highlights

This pilot is ideal for steam systems, efficiently regulating flow and pressure. It includes a downstream sensing line that informs the valve to adjust diaphragm pressure, optimizing the steam distribution as demand fluctuates.

Product Information

Standard Information

• Brand: Spence
• Model: D

Technical Specifications

• MPN: P-D-C1A1NS
• Valve Application: Steam
• Body Material: Cast Iron
• Piping Configuration: Straight
• Valve Connection: Flanged
• Max Pressure: 150 psi WSP
• Weight: 8.35
