Spence E-3-250 E-Main Regulator Valve Cast Iron 3 Flg 250 psi E-C1K3A1

Product Description

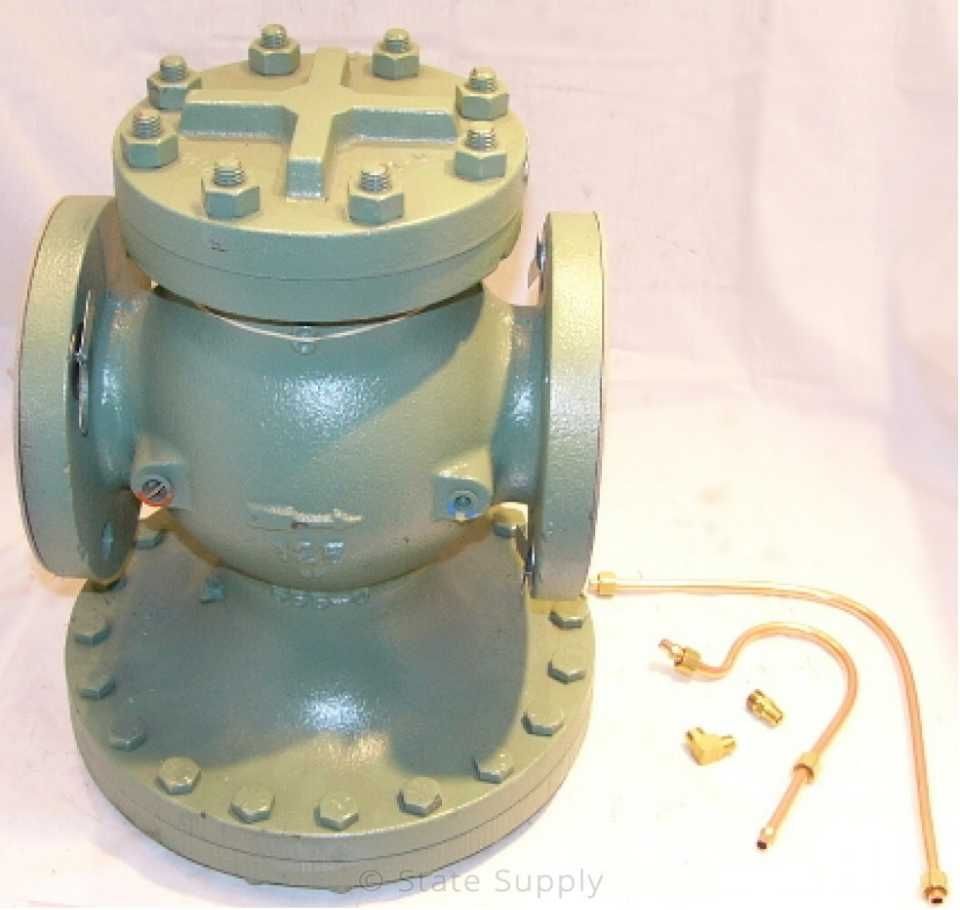

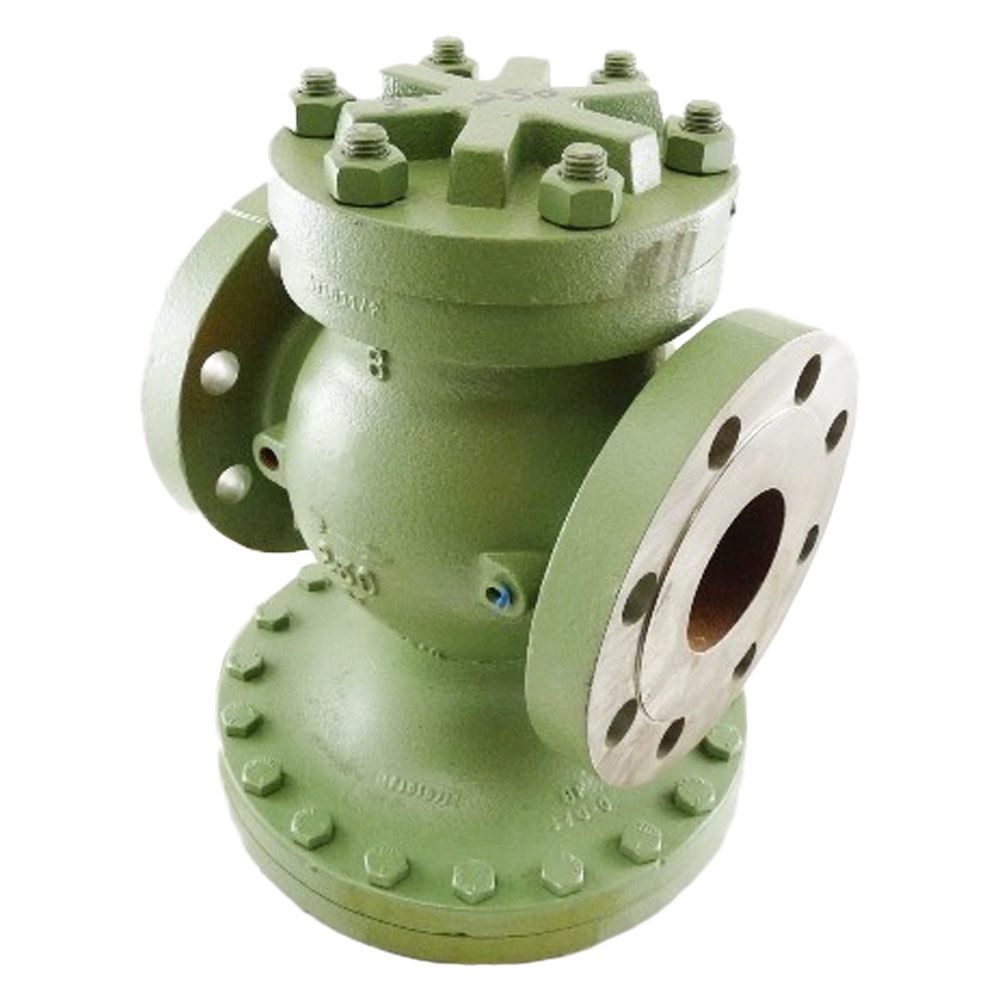

The Spence E-3-250 is a main regulator valve designed for steam applications. This valve is built with a cast iron body and features a flanged connection. It operates at a maximum pressure of 250 psi, ensuring its reliability in various settings.

• Packless construction for reduced leakage
• Balanced metal diaphragms for stability
• Protected main spring enhances durability

Product Highlights

The Spence E-3-250 valve is suitable for use in steam systems and offers a straight piping configuration. The normally closed, single seat design optimizes performance under pressure.

Product Information

Standard Information

• Brand: Spence
• MPN: E-3-250

Technical Specifications

• Model: E-C1K3A1
• Valve Size: 3 inches
• Valve Connection: Flanged
• Piping Configuration: Straight
• Body Material: Cast Iron
• Valve Application: Steam
• Max Pressure: 250 psi WSP
• Weight: 137.50 lbs
