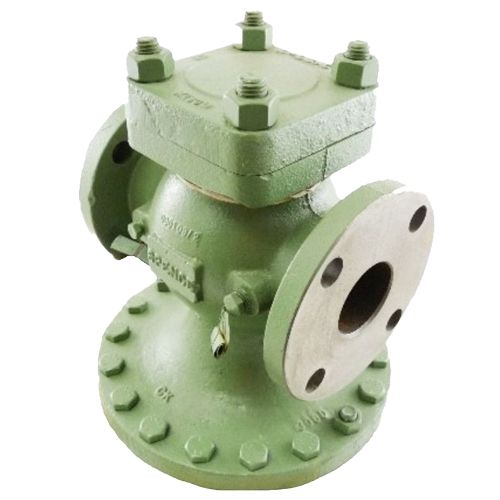

Spence E-2-125 E-Main Regulator Valve Cast Iron 2 Flg 125 psi E-C1H1A1

Product Description

Spence E-2-125 E-Main Regulator Valve features a cast iron construction with a two inch flanged connection. It operates as a normally closed valve, utilizing a single seat design and packless construction. This valve comes equipped with balanced metal diaphragms and a protected main spring to enhance durability and performance. The valve is suitable for use in steam applications and achieves a maximum pressure of one hundred twenty-five psi. Controlled by compatible Spence pilots, it is ideal for various pressure regulation functions.

• Body material: Cast Iron
• Valve size: Two inches
• Max pressure: 125 psi

Product Highlights

Designed for reliability and efficiency in steam control applications, this valve is suitable for commercial and industrial use.

Product Information

Standard Information

• Brand: Spence
• MPN: E-2-125
• Model: E-C1H1A1

Technical Specifications

• Valve Size: 2 inches
• Valve Connection: Flanged
• Piping Configuration: Straight
• Body Material: Cast Iron
• Valve Application: Steam
• Max Pressure: 125 psi
• Weight: 75.00 lbs
