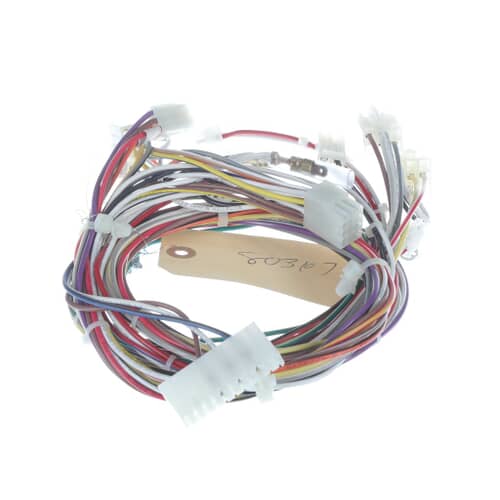

Speed Queen 803107 Control Harness Front Assembly

Product Description

The Speed Queen 803107 is a front control wiring harness assembly designed for use in Speed Queen laundry equipment. This harness serves as the electrical interconnect between the front control panel and the machine's main control system, routing low-voltage signals and power to switches, selectors, and indicators mounted on the front of the unit. Installation is typically performed by appliance technicians or qualified service professionals during diagnostic replacement of wiring faults or control panel servicing.

This assembly is suited for residential Speed Queen laundry applications where the front control harness has failed, shows signs of damage, or is being replaced as part of a broader control system repair. It restores proper electrical communication between the user interface and the internal control components, ensuring correct cycle selection and machine operation.

Key Features

• OEM-style front control harness assembly for Speed Queen laundry equipment
• Connects front control panel to main control system for signal and power routing
• Designed as a direct replacement to restore factory electrical performance
• Supports proper function of cycle selectors, switches, and front-panel indicators

Compatibility

Designed as an OEM-style replacement front control harness for Speed Queen residential laundry equipment. Consult the Speed Queen parts catalog or equipment service manual to confirm fitment for your specific model before ordering.

Installation Notes

Installation should be performed by a qualified appliance technician. Disconnect and lock out all electrical power to the unit before removing or installing any wiring harness. Take note of all connector positions and routing paths before disconnecting the original harness to ensure correct reassembly. Follow all applicable local electrical codes during service.

Technical Specifications

• Component Type: Wiring Harness Assembly
• Location: Front Control Panel
• Application: Laundry Equipment Control System

Standard Information

• Brand: Speed Queen
• Manufacturer Part Number: 803107
