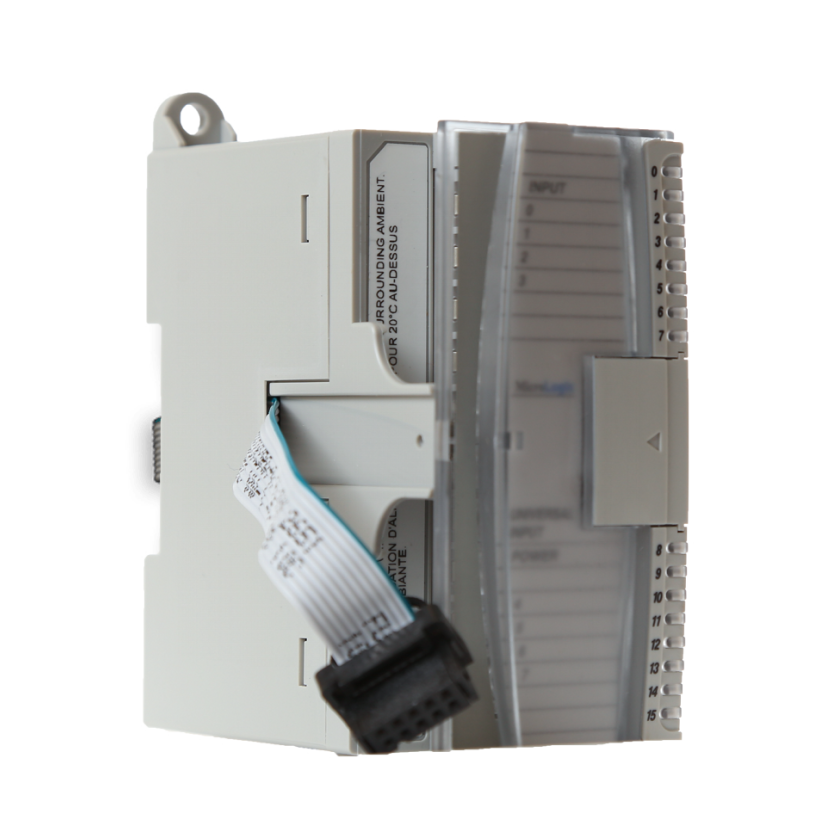

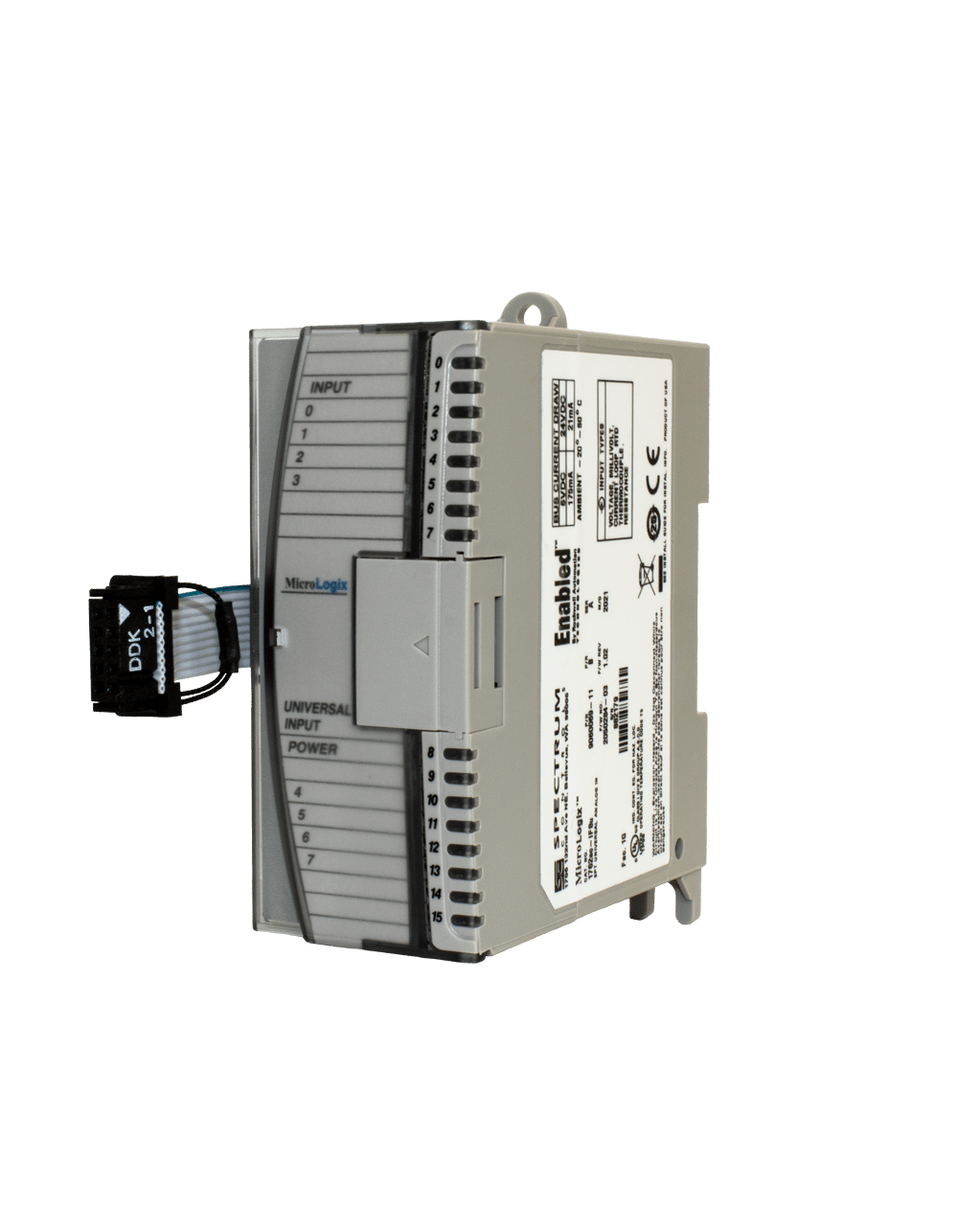

SPECTRUM 1762SC-IF8U Allen-Bradley MicroLogix Analog Input Module

Product Description

The SPECTRUM 1762SC-IF8U is an Allen-Bradley MicroLogix analog input module. It offers eight universal channels. This module supports simultaneous voltage, current, and thermocouple inputs. It can measure up to four channels of RTD or resistance inputs. The device features a resolution of 16 bits and has advanced filtering options with selectable frequencies.

• Includes input overvoltage protection of +/- 28 VDC.
• Channel-to-channel isolation rated at 10 VDC.
• Operates effectively within a relative humidity range of 5 to 95%.

Product Highlights

Designed for high common mode rejection with a rating of 100 dB at 50/60 Hz.

Product Information

Standard Information

• Brand: SPECTRUM
• MPN: 1762SC-IF8U

Technical Specifications

• Resolution: 16 bit
• Dimensions: 6.5 inches L x 1.65 inches W x 3.78 inches H
