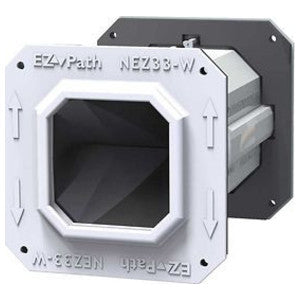

Specified Technologies NEZ33-W EZ-Path Smoke/Acoustic Pathway White

Product Description

The Specified Technologies NEZ33-W is an EZ-Path smoke and acoustical pathway designed for non-fire rated walls and floors. It allows for the easy passage of cables while maintaining smoke sealing. This product has adjustable features suitable for various wall and floor thicknesses.

• Facilitates cable penetration without smoke sealing
• Designed to fit openings up to four inches
• Made from durable ABS and polycarbonate materials

Product Highlights

The pathway supports efficient installation and cable management while meeting regulatory standards for safety.

Product Information

Standard Information

• Brand: Specified Technologies
• Model Number: NEZ33-W

Technical Specifications

• Application: For allowing cables to penetrate non-fire rated walls and floors without the need for smoke sealing
• Color: White
• Dimensions: 6-1/4 inches L x 6-1/4 inches W x 5 inches H
• Includes: Outer shell, inner shell, and hardware
• Material: ABS/Polycarbonate/Thermoplastic
• Mounting Type: Floor/Wall
• Number of Openings: 1
• Opening Size: 4 inches
• Series: 33NEZ
• Standards/Approvals: ARRA Compliant, Buy American Compliant, OSHA 29 CFR 1910.1200, STC/ASTM E90-09, UL 1479, UL 2043 Plenum Rated, RoHS Compliant
• Type: Cylinder Lightweight Non-Fire Rated
