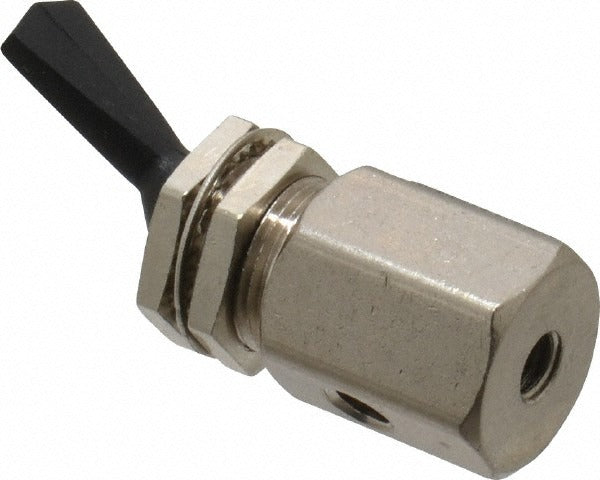

Specialty Mfr 200490 Toggle Air Valve 3-way 8 Position

Product Description

The SPECIALTY MFR 200490 is a detented toggle air valve designed for pneumatic control applications in industrial and mechanical systems. This 3-way valve features an 8-position detented actuator that holds its set position without requiring continuous operator force, making it reliable for manual directional control of compressed air circuits. It carries a Cv rating of 0.100 and a maximum working pressure of 150 psi, with a maximum operating temperature of 180 degrees F. Licensed technicians and mechanical contractors install this type of valve in pneumatic tool circuits, process control panels, and equipment control manifolds.

This valve is suited for industrial pneumatic systems where precise manual control and repeatable positioning are required. The detented mechanism locks the actuator at each of its 8 positions, eliminating drift under pressure. Typical applications include compressed air distribution panels, pneumatic actuator control circuits, and manual selector stations in light manufacturing and process environments. It is appropriate for both new installations and replacement service where a compact 3-way toggle valve is specified.

Key Features

• 8-position detented actuator holds position without continuous operator input
• 3-way valve design for directional control of compressed air flow
• 0.100 Cv rating for low-flow pneumatic circuit applications
• Rated to 150 psi maximum working pressure
• Operates in environments up to 180 degrees F
• Compact toggle form factor suited for panel and manifold mounting

Compatibility

Designed as an OEM-style replacement or direct installation component for pneumatic control systems requiring a 3-way detented toggle valve rated to 150 psi.

Installation Notes

Installation should be performed by a qualified technician familiar with pneumatic system design and compressed air safety practices. Depressurize and isolate the pneumatic circuit completely before removing or installing any valve. Verify that system operating pressure and temperature do not exceed the valve ratings of 150 psi and 180 degrees F. Follow applicable OSHA compressed air safety guidelines and local mechanical codes during installation and startup.
