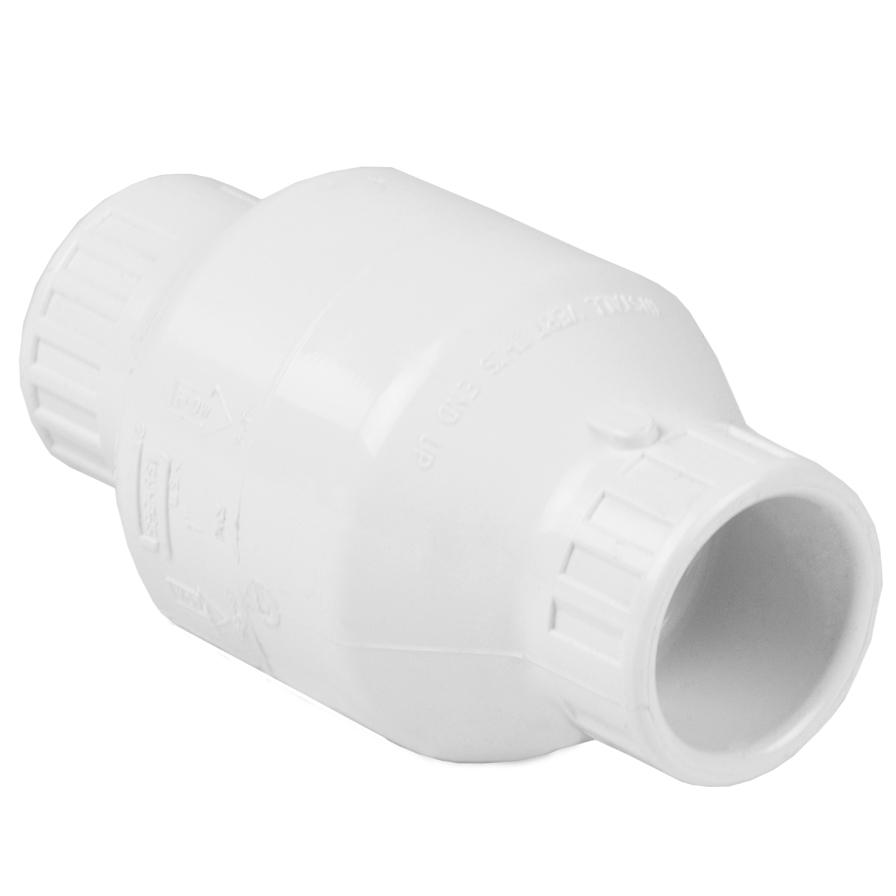

Spears S1520C12 1-1/4 PVC CL Utility SWG CK VLV SOC EPDM

Product Description

The Spears S1520C12 is a 1-1/4 inch PVC utility swing check valve featuring socket welded ends. It withstands a pressure of 150/75 psi and operates at temperatures of up to 140 degrees Fahrenheit. This valve is designed for use with water and is built using PVC material with an EPDM trim. The compact design offers a maintenance-free alternative that promotes quick response and positive shut-off.

• 1-1/4 inch PVC construction
• Pressure rated at 150 psi
• Maintenance-free design

Product Highlights

The utility swing check valve is suitable for applications in landscape irrigation, pool and spa systems, and aquaculture.

Product Information

Standard Information

• Manufacturer: Spears
• MPN: S1520C12

Technical Specifications

• Body Material: PVC
• Color: Clear
• Dimensions: 3-3/8 inches in height
• End Style: Socket Welded
• Inlet to Outlet Length: 5-1/2 inches
• Low Lead Compliance: No
• Media: Water
• Nominal Size: 1-1/4 inches
• Pressure Rating: 150/75 psi
• Temperature Rating: 140 degrees Fahrenheit
• Trim Material: EPDM
