Spears S130-05 Adapter 1/2 inch

Product Description

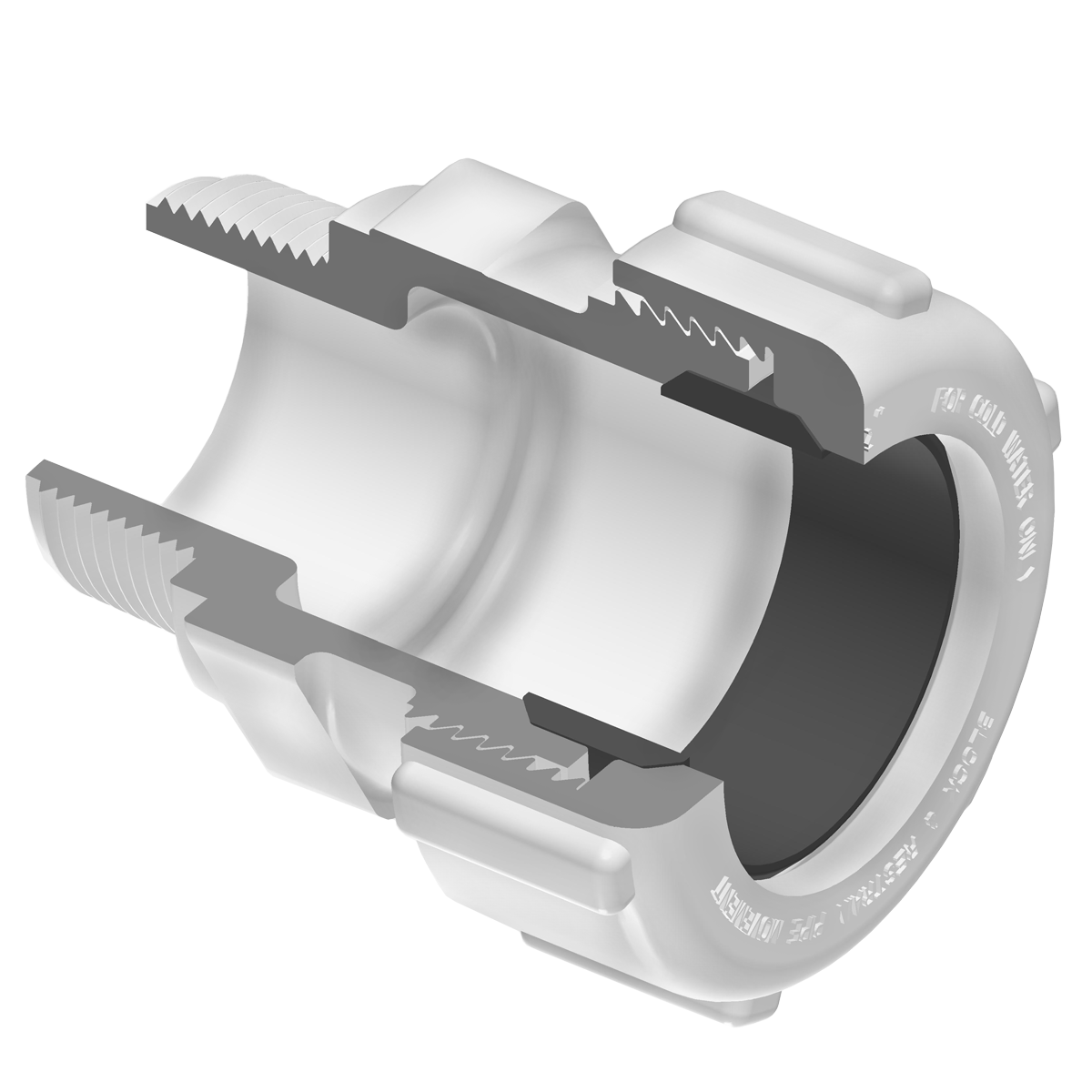

The Spears S130-05 adapter fitting/connector features a 1/2 inch nominal size with a compression x MNPT end style. Constructed from PVC with a Buna-N gasket seal, it is suitable for use in cold water/fluid applications. This standard adapter has a pressure rating of 200 psi.

• Adapts pipe to MPT thread quickly
• Features an easy-thread compression nut
• Male thread conforms to ANSI B 1.20.1 NPT standards

Product Highlights

This PVC compression male adapter is designed for durability and reliable performance in various plumbing applications.

Product Information

Standard Information

• Brand: SPEARS
• Manufacturer Part Number: S130-05

Technical Specifications

• Color: White
• Domestic/Import: Domestic
• End Style: Compression x MNPT
• Fitting/Connector Type: Adapter
• Length: 2-11/16 in
• Material: PVC
• Method of Manufacture: Molded
• Nominal Size: 1/2 in
• Pressure Rating: 200 psi
• Schedule Rating: SCH 40/STD
• Seal Material: Buna-N Gasket
• Type: Standard
• Manufacturer: Spears
• Item Number: S130-05
• Brand: Spears
• Category: Schedule 40 Fittings Product
• Joint: Repair Coupling - Socket x Socket
• O-Ring: Elastomer Gasket
• Size: 1/2"
• Subcategory: PVC Repair Fittings
• Fitting Type: Compression Adapter
• Schedule: Schedule 40
• Connection Type: Compression x MPT
• Max Pressure: 200 PSI
• UPC Code: 054211395028
• Ratings & Standards: NSF Approved
• Ends: COMP x MIPT
• Body Material: Sch. 40 PVC
• Max Temperature: 140°F
• Size in Inches: 1/2 inch
