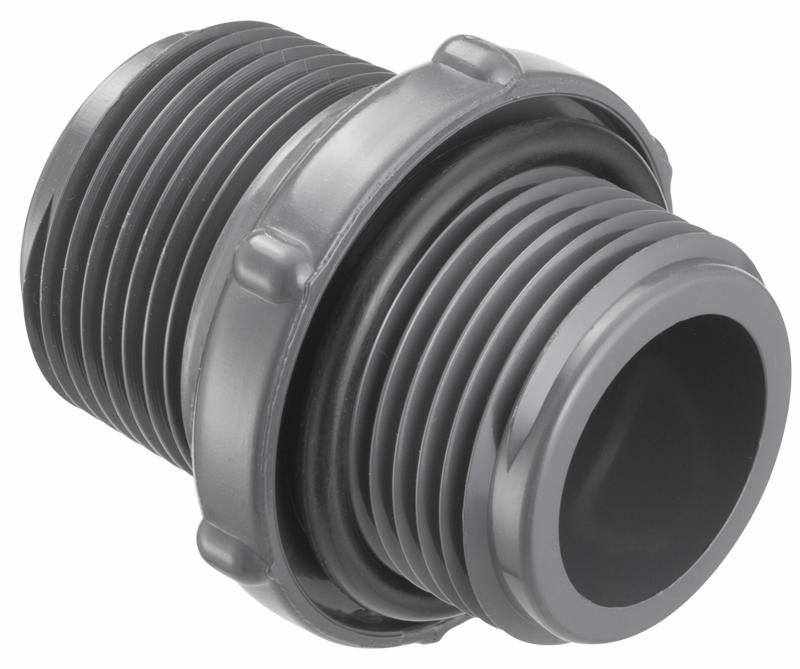

Spears MA8306-010 1 PVC Manifold Nipple MPTXMPT W/O-Ring

Product Description

The Spears MA8306-010 manifold nipple is 1 in. nominal size, made from PVC, and ideal for quick mechanical assembly with other Spears manifold components. O-ring sealed swivel connections require no thread sealants. Compatible with all 1 in IPS pipe thread outlets. Pressure rated to 150 psi at 73 deg F (23 deg C).

• O-ring sealed swivel connections require no thread sealants - large cross-section o-ring allows hand tight assembly for positive seal
• Compatible with all 1 in IPS pipe thread outlets
• Pressure rated to 150 psi at 73 deg F (23 deg C)

Product Highlights

The Spears manifold nipple is designed for transition from manifold to O-ring sealed manifold threaded outlet. It features an EPDM O-ring and is long-lasting.

Product Information

Standard Information

• Brand: Spears
• Manufacturer Part Number: MA8306-010

Technical Specifications

• Domestic/Import: Domestic
• End Style: MNPT
• Material: PVC
• Method of Manufacture: Molded
• Nominal Size: 1 in
• Schedule Rating: SCH 80/XH
• Manufacturer: Spears
• Item Number: MA8306-010
• Fitting Type: Nipples
• Connection Size: 1" x 1"
• Connection Type: MPT x MPT
• Type: Manifold
• Item: Nipple/O-Ring
• Regulated: No
• Brand Name: Spears
