Spears 853-040 Blind Flange Class 150 Schedule 80 Gray PVC 4

Product Description

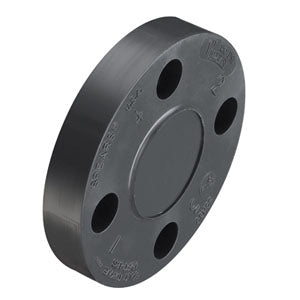

This Spears Manufacturing 853-040 is a schedule 80 PVC class 150 blind flange. It serves the purpose of covering or closing the end of a pipe. The fitting is gray, made from PVC, known for its chemical and corrosion resistance. This blind flange is compatible with schedule 80 PVC pipes and is ideal for various applications, including chemical processing, chilled water distribution, and wastewater systems. Its maximum pressure rating is 150 psi, suitable for a maximum operating temperature of 140 degrees Fahrenheit. It adheres to ASTM D1784 and D2467 standards and is NSF certified for potable water.

• Blind flange for covering or closing the end of a pipe
• Class 150 bolt pattern per ANSI B16.5 for connections
• PVC construction offers lightweight and high-strength features

Product Highlights

Product Information

Standard Information

• Manufacturer: Spears Manufacturing
• Material: PVC

Technical Specifications

• MPN: 853-040
• Size: 4 inches
• Pressure Rating: 150 psi
• Temperature Rating: 140 degrees Fahrenheit
• Standards: ASTM D1784, D2467, NSF certified
• Number of Bolts: 8
• Outside Diameter: 9-1/16 inches
• Bolt Hole Diameter: 5/8 inches
• Bolt Circle Diameter: 7-1/2 inches
• Thickness: 1-5/32 inches
