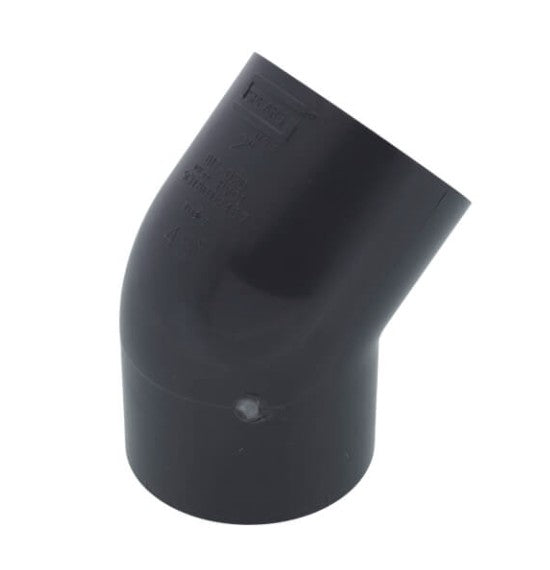

Spears 54211193051 Pvc Sch 80 45 Degree Socket Elbow 2 in

Product Description

The SPEARS 54211193051 is a 2-inch Schedule 80/XH PVC 45-degree socket elbow rated for 150 psi non-shock pressure at 73 degrees F. Injection molded from PVC Type I, cell classification 12454, this fitting meets ASTM D2467 and carries NSF certification for potable water service. The gray PVC construction delivers the wall thickness and pressure rating required for industrial and commercial piping systems. Plumbers and pipefitters install this fitting wherever a 45-degree directional change is needed in a pressure-rated PVC line.

This elbow is suited for residential and commercial plumbing, irrigation, industrial process piping, and chemical distribution systems where PVC Schedule 80 pressure fittings are specified. The socket end style accepts solvent-welded connections to 2-inch Schedule 80 PVC pipe. Domestic manufacture and conformance to ASTM and NSF standards make this fitting a common specification item on projects requiring certified potable water components.

Key Features

• 150 psi non-shock pressure rating at 73 degrees F
• Schedule 80/XH wall thickness for higher-pressure applications
• NSF-certified for potable water service per ASTM D2467
• PVC Type I, cell classification 12454, per ASTM D1784
• Injection molded construction for consistent dimensions and strength
• Socket end style for solvent-weld installation to Schedule 80 PVC pipe

Compatibility

Designed as an OEM-style pressure fitting compatible with 2-inch Schedule 80/XH PVC piping systems requiring a solvent-weld 45-degree elbow.

Installation Notes

Installation should be performed by a licensed plumber following applicable IPC or local plumbing code requirements. Shut off and depressurize the line before cutting into any existing piping. Use a PVC-rated primer and solvent cement appropriate for Schedule 80 fittings and allow full cure time before pressurizing. Do not exceed the rated pressure or temperature limits of the fitting.

Technical Specifications

• Nominal Size: 2 inches
• Pressure Rating: 150 psi non-shock
• Temperature Rating: 73 degrees F
• Schedule Rating: SCH 80/XH
• End Style: Socket
• Fitting Type: 45 Degree Elbow
• Material: PVC Type I, Cell Classification 12454
• Method of Manufacture: Injection Molded
• Color: Gray
• Standards: ASTM D1784, ASTM D2467, NSF Potable Water Certified
• Origin: Domestic

Standard Information

• Brand: SPEARS
• Manufacturer Part Number: 54211193051
