Spears 54211168455 Pvc Sch 80 Coupling 1/2 in Socket

Product Description

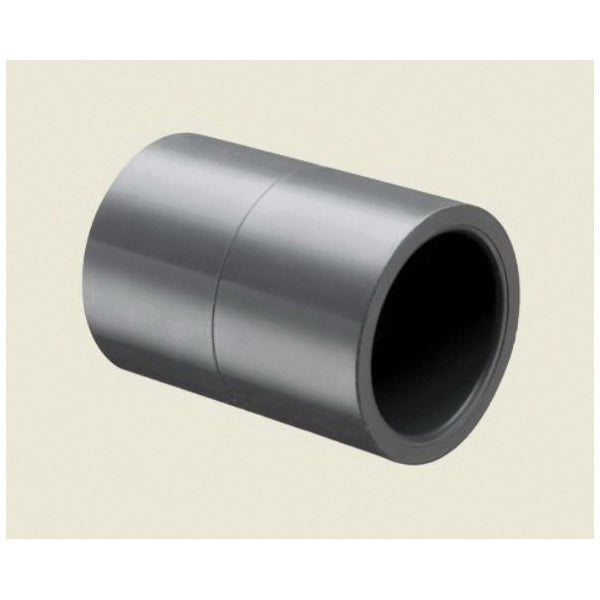

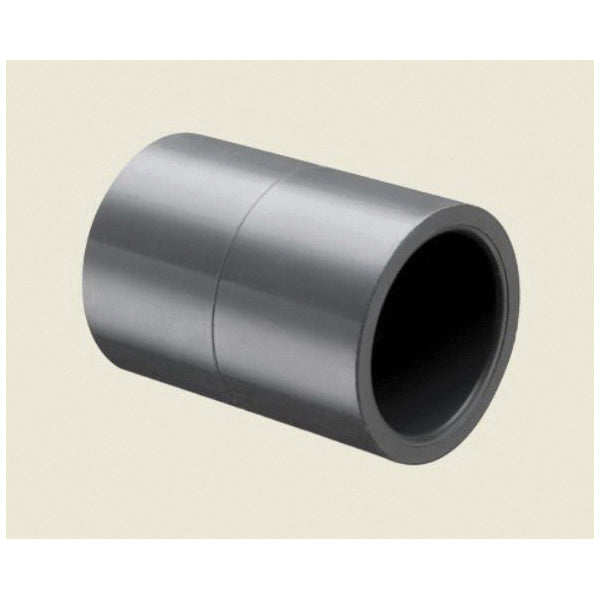

The SPEARS 54211168455 is a standard PVC socket-end coupling fitting rated for Schedule 80/XH service. It is molded from PVC Type I (cell classification 12454) and carries a 150 psi non-shock pressure rating at 73 degrees F. Measuring 1-7/8 inches in length and 1-3/16 inches in width, this compact fitting is sized for 1/2 inch nominal pipe. It is used in pressurized piping systems where a reliable, chemically resistant socket connection is required. Plumbers and pipefitters install it wherever a straight inline connection between two pipe sections is needed in PVC SCH 80 systems.

This coupling is suited for residential and light commercial plumbing, irrigation, industrial process piping, and chemical handling applications that call for SCH 80 PVC components. Its gray color indicates Schedule 80 wall thickness, distinguishing it from lighter-duty Schedule 40 fittings. The socket end style accepts standard 1/2 inch PVC pipe for solvent-cement joining. Because it is NSF-certified for potable water service, it is also appropriate for domestic water distribution systems where code compliance is required.

Key Features

• Molded PVC Type I construction rated to 150 psi non-shock at 73 degrees F
• Socket end style designed for solvent-cement joining to 1/2 inch SCH 80 PVC pipe
• NSF International certified for potable water service per ASTM D2467
• Complies with ASTM D1784 and ANSI B16.5 standards
• Domestically manufactured in the United States
• Compact profile: 1-7/8 inches long, 1-3/16 inches wide, 0.05 pounds

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1/2 inch nominal Schedule 80/XH PVC piping systems requiring socket-end connections.

Installation Notes

This fitting is installed by licensed plumbers or pipefitters using approved PVC solvent cement and primer per local plumbing code and ASTM D2564 procedures. Always depressurize and drain the piping system fully before cutting out or installing any fitting. Allow full solvent-cement cure time before restoring system pressure. Consult applicable IPC or local code requirements for potable water applications.

Technical Specifications

• Nominal Size: 1/2 inch
• Pressure Rating: 150 psi non-shock at 73 degrees F
• Schedule Rating: SCH 80/XH
• Length: 1-7/8 inches
• Width: 1-3/16 inches
• Weight: 0.05 pounds
• Material: PVC Type I, cell classification 12454
• Color: Gray
• End Style: Socket
• Method of Manufacture: Molded
• Standards and Approvals: ASTM D1784, ASTM D2467, ANSI B16.5
• NSF Certified: Potable water service
• Country of Origin: United States

Standard Information

• Brand: SPEARS
• Manufacturer Part Number: 54211168455
