Spears 54211163559 Reducing Bushing 2 x 1-1/4 in (SPE-438-250)

Product Description

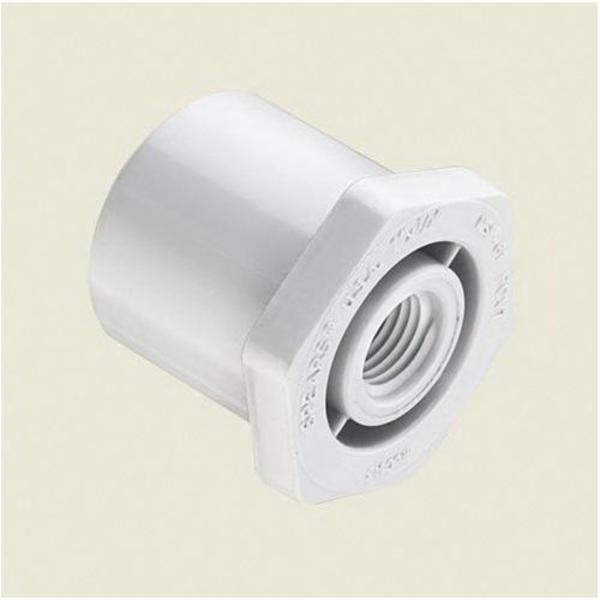

The Spears 54211163559 is a Schedule 40 PVC reducing bushing (SPE-438-250) that provides a spigot-to-FNPT transition for 2 x 1-1/4 in nominal piping. The flush-style molded PVC fitting is 1-5/8 in long and includes material reinforcement at stress concentration areas to improve pressure handling. It is designed for standard Schedule 40 systems and carries ASTM D1784 and ASTM D2466 specifications with NSF approval and chemical resistance suitable for PVC piping.

• Spigot x FNPT end style for 2 x 1-1/4 in nominal size
• SCH 40/STD PVC construction, length 1-5/8 in
• Flush molded design with reinforcement at stress concentration areas for improved pressure handling

Product Highlights

Schedule 40 PVC reducing bushing, spigot-to-FNPT connections, 1-5/8 in length; meets ASTM D1784, ASTM D2466 and NSF approvals.

Product Information

Standard Information

• Brand: SPEARS
• Manufacturer Part Number: 54211163559
• Country of Origin: Domestic (United States)

Technical Specifications

• Brand: Spears
• Manufacturer Part Number: 54211163559
• Model: SPE-438-250
• Item Number: 9705
• Fitting Type: Reducing bushing
• Shape: Bushing
• Type: Reducing female spigot
• Nominal Size: 2 x 1-1/4 in
• End Style: Spigot x FNPT
• Length: 1-5/8 in
• Schedule Rating: SCH 40/STD
• Class: Schedule 40 / Standard / 150#
• Material: PVC
• Standard Approvals: ASTM D1784; ASTM D2466; NSF Approved
