Spears 4539-005 1/2 PVC TU2K INDBALCHKVLV SOC/FPT FKM

Product Description

Spears 4539-005 is a true union 2000 industrial ball check valve designed for water applications. This valve features a PVC body and FKM softgoods. It is suitable for a nominal size of one-half inch with a socket and female national pipe thread connection. The valve has a pressure rating of two hundred thirty-five psi and operates effectively at a temperature of seventy-three degrees Fahrenheit.

• Chemical and corrosion resistant PVC construction
• Fully serviceable and replaceable components
• Suitable for horizontal or vertical installations

Product Highlights

This valve provides easy installation and maintenance with replaceable components.

Product Information

Standard Information

• Manufacturer: Spears
• MPN: 4539-005

Technical Specifications

• Ball Material: PVC
• Body Material: PVC
• Color: Gray

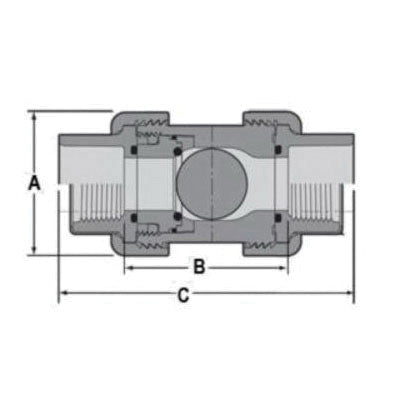

• Dimensions: 1-7/8 in H
• End Style: Socket/FNPT
• Inlet to Outlet Length: 4-1/4 in
• Media: Water
• Nominal Size: 1/2 in
• Pressure Rating: 235 psi
• Softgoods Material: FKM
• Temperature Rating: 73 deg F
• Type: True Union 2000 Industrial
