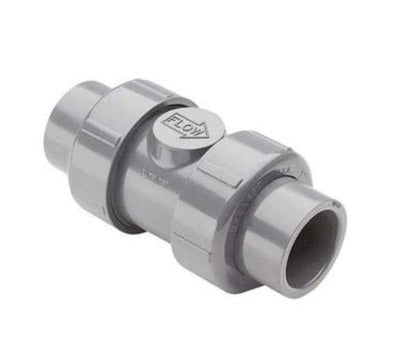

Spears 4522-030C True Union 2000 Industrial Ball Check Valve 3 in Socket EPDM

Product Description

Spears 4522-030C is a 3 in True Union 2000 Industrial ball check valve with a CPVC body, CPVC ball, and EPDM softgoods. It prevents system backflow using a full-port ball check mechanism and installs with socket ends. The valve is double-union for in-line servicing, assembled with silicone-free water-soluble lubricant, and includes a Safe-T-Blocked seal carrier. Rated 235 psi at 73 deg F; inlet-to-outlet length 10-13/16 in and overall height 6-3/16 in.

• CPVC body and CPVC ball with EPDM O-ring softgoods; suitable for water service
• True Union double-union design with socket ends for in-line removal and servicing
• Rated 235 psi at 73 deg F; inlet-to-outlet length 10-13/16 in and overall height 6-3/16 in

Product Highlights

True Union CPVC ball check valve, EPDM O-ring, 235 psi @ 73 deg F, socket ends

Product Information

Standard Information

• Brand: SPEARS
• Manufacturer Part Number: 4522-030C
• Country of Origin: United States

Technical Specifications

• Brand: Spears
• Manufacturer Part Number: 4522-030C
• Series/Model: True Union 2000 Industrial
• Type: Ball Check Valve
• Nominal Size: 3 in
• End Style: Socket
• Body Material: CPVC
• Ball Material: CPVC
• Softgoods Material: EPDM O-ring
• Pressure Rating: 235 psi (at 73 �F)
• Inlet to Outlet Length: 10-13/16 in
• Overall Height: 6-3/16 in
• Weight: 7.27 lbs
• Media: Water
• Construction: True Union / Double union
• Pressure Class/Schedule: Schedule 80 (as stated by manufacturer)
• Standards and Approvals: ASTM D1784 / F1970; NSF approved
• Country of Origin: United States
• Mounting Orientation: Suitable for horizontal or vertical installation; suitable for vacuum service
• Assembly Lubricant: Silicone-free, water soluble lubricant
• Seal Carrier: Spears Safe-T-Blocked seal carrier
• Serviceability: Fully serviceable with replaceable components
