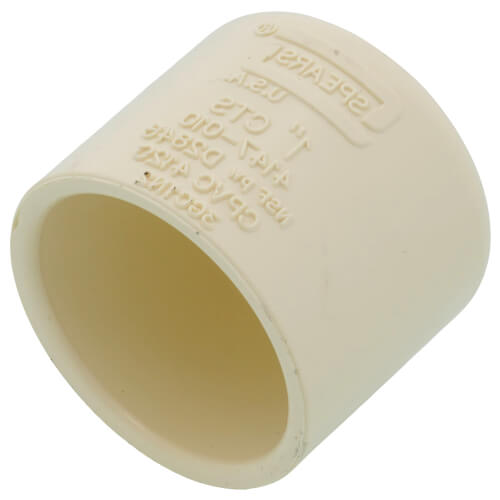

Spears 4147010 CTS CPVC Cap Socket (1 in) 4147-010

Product Description

The Spears 4147010 is a 1 in CTS CPVC socket cap used to terminate CPVC piping runs; it is lead free and rated for continuous working pressure of 100 psi at 180°F (82°C) and 400 psi at 73°F (23°C). Molded from CPVC per ASTM D2846/D1784, the cap is intended for solvent-weld installation in hot and cold potable water and distribution systems. Dimensions: approx 1-3/8 in length by 1-9/32 in width.

• Nominal size: 1 in CTS with socket end for solvent-weld connection
• Material: molded CPVC (Type IV, Grade I) manufactured to ASTM D2846/D1784; lead free
• Pressure and temperature: 100 psi at 180°F (82°C); 400 psi at 73°F (23°C); NSF 61 approval noted

Product Highlights

1 in CTS CPVC socket cap; molded construction; pressure rated 100 psi at 180°F; solvent-weld installation; NSF and ASTM compliance.

Product Information

Standard Information

• Brand: SPEARS
• Manufacturer Part Number: 4147010
• Country of Origin: United States

Technical Specifications

• Brand: Spears
• Manufacturer Part Number: 4147010
• Alternate Part Number: 4147-010
• Series: 4147
• Nominal Size: 1 in (CTS)
• Connection Type: Socket
• Fitting Type: Cap
• Material: CPVC (Type IV, Grade I)
• Material Specification: ASTM D2846
• Cell Classification: 23447 per ASTM D1784
• Pressure Rating: 100 psi at 180°F (82°C); 400 psi at 73°F (23°C)
• Temperature Rating: 180°F (82°C)
• End Style: Socket (solvent weld)
• Method of Manufacture: Molded
• Dimensions: Approx. 1.375 in length x 1.28125 in width (1-3/8 in x 1-9/32 in)
• Weight: 0.04 lbs
• Application: Hot and cold potable water distribution systems; commercial hot water
• Standards and Approvals: NSF 61; ASTM D-1784 / ASTM D-2846
• Country of Origin: United States
• Manufacturer: Spears Manufacturing
• Lead Free: Yes
• UPC: 054211107423
